Description

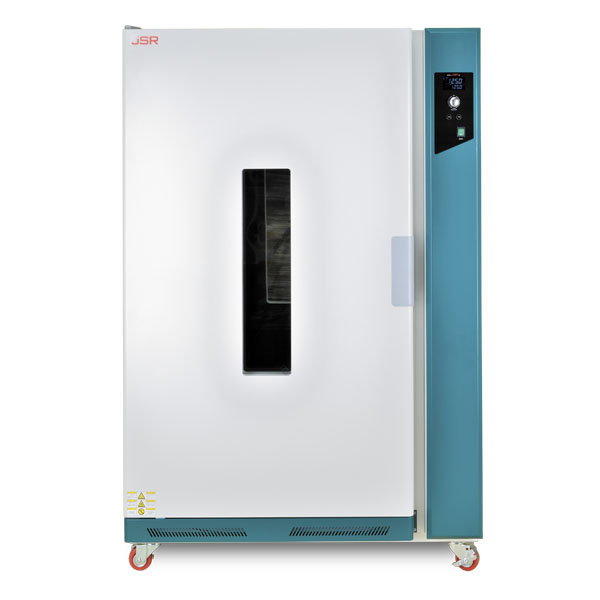

Programmable Upright Convection Oven Model: JSOF-700P JSR Korea
Oven, Forced Convection, Programmable Controller, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 250, 372, 655 liters.
General Specifications
| Heating | Forced Air Convection |

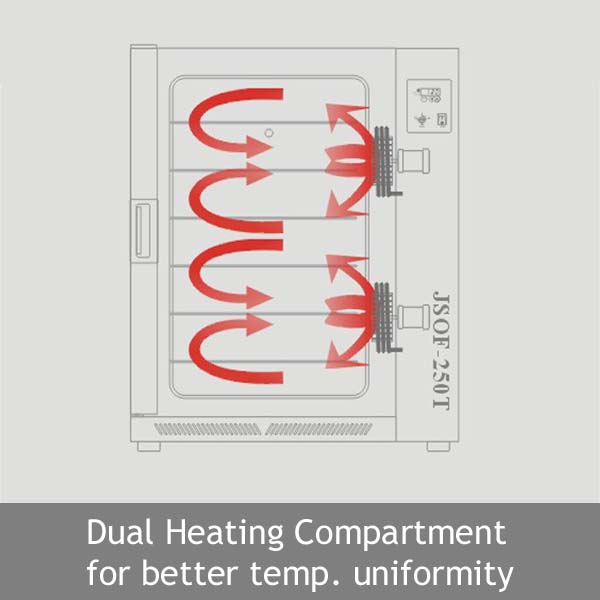

| Dual heating chamber system | |
| Temp. Range | ambient + 10°C ~ 250°C |
| Accuracy | ± 0.3°C at 120°C (JSOF-250P) |
| Uniformity | ± 1.5°C at 120°C (JSOF-250P) |
| Control | JIC-CON 5th GEN Programmable PID Controller |

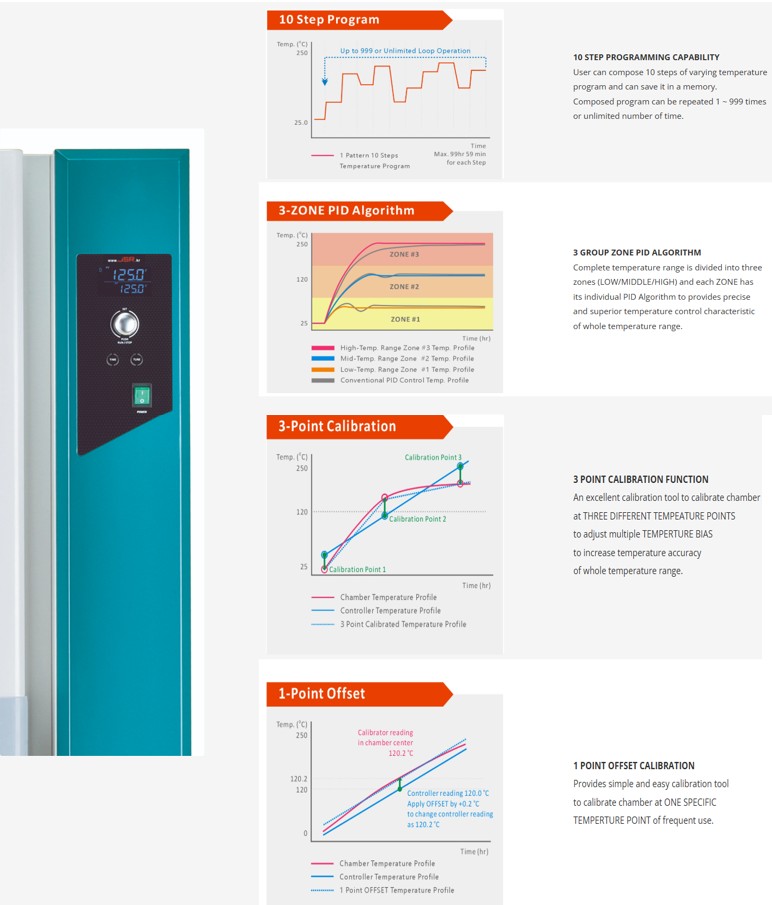

| Program | 1 Pattern, 10 Steps, 1 ~ 999 (or unlimited) times repreat |
| 3-Zone Temperature Control Algorithm | |
| Calibration | 3-Point Temperature Calibration |
| 1-Point Temperature Offset Calibration | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |

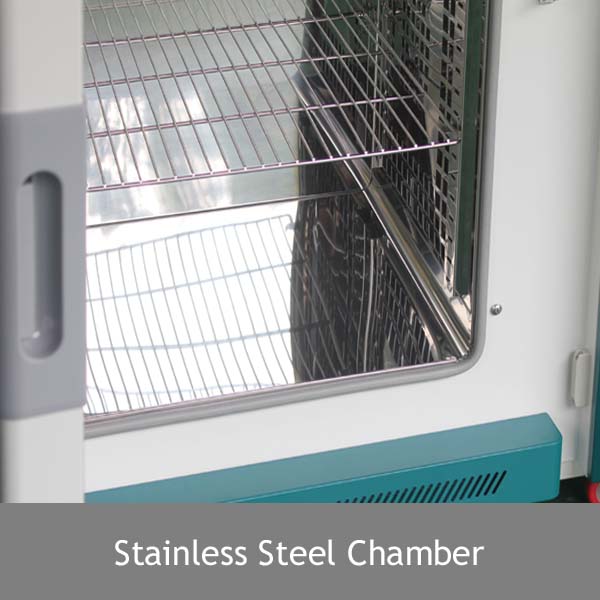

| Chamber – Stainless Steel 304 | |
| Insulation – 50mm thick woven mineral wool | |
| Shelf -including stainless steel wire shelf | |
| optional perforated stainless steel shelf | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 or 30 AMP |
Features
Model
| Art No. | JSOF-700P | |
| Chamber Volume | 655 L | |
| Dimensions | Inner | 710 x 710 x 1300 |
| W x D x H mm | Outer | 1105 x 885 x 1660 |
| Window | W150 x H615 | |
| Temperature Range | ambient +10°C to 250°C | |
| Accuracy at 120°C | ± 0.3°C | |
| Uniformity at 120°C | ± 3.0°C | |
| Heat up time to 120°C | 15 min. | |
| No. of Shelves / Max. No. | Jun-48 | |
| No. of Ventilation damper | 1 | |
| Heater Capacity | 2 x 2.5 kW | |
| Power Rating | 23.2 Amp | |
| Power Plug | 30 AMP | |
| Performance |
| • Control Temperature Range from ambient +10 oC to 250 oC
• Forced air convection for fast drying application • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on side wall for contamination free and maintenance free • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
| Controller |
| • DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER
Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 °C CONTROL RESOLUTION • 1 Pattern, 10 Steps, 1 ~ 999 times loop operation programmable • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
| Construction |
| • Durable epoxy powder coated metallic casing
• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Double layered glass window for easy observation of samples • Ventilation damper
|
| Convenience |
| • Floor standing large capacity oven provides more through-put and productivity of sample treatment
• Double layered tempered safety glass window for easy observation of samples • Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Removable and height adjustable shelf by 25mm spacing • Easy-to-open and air-tight one touch door latch • Opening size adjustable ventilation damper • Door switch cut-off heater and blower to protect user from exposure to hot air • Caster for easy transport
|
| Safety |
| • PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM
• DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater and AUDIO VISUAL ALARMS ALARM HIGH : +10 oC above set temp. ALARM LOW : -10 oC below set temp. • Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker
|
Ordering Information
| Art No. | Descriptions | Capacity | Elec. Req. | Net Wt. | Ship Wt. |
| JSOF-700P | Programmable Upright Convection Oven | 655 L | 220 VAC 50/60 Hz | 190 kg | 255 kg |
Optional Accessories
| Art No. | Perforated Shelf, Stainless Steel 304 |
| PHS-A06 | for JSOF-250T W470 x D480 mm |
| PHS-A11 | for JSOF-400T W580 x D590 mm |
| PHS-A15 | for JSOF-700T W680 x D690 mm |
| Art No. | Wire Shelf, Stainless Steel 304 |
| PHS-B06 | for JSOF-250T W470 x D480 mm |
| PHS-B11 | for JSOF-400T W580 x D590 mm |
| PHS-B12 | for JSOF-700T W680 x D690 mm |
| PHS-A99 | Shelf Support, Set of 4 |
