Description
Heavy Duty Industrial Oven Model: JSIO-960T JSR Korea
Oven, Forced Convection, Industrial Scale, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 410, 960, 1386 liters.
General Specifications
| Heating | Forced Air Convection |
| Horizontal Air Flow | |
| Temp. Range | ambient + 10°C ~ 250°C |
| Accuracy | ± 0.3°C at 120°C (JSIO-400T) |
| Uniformity | ± 5.0°C at 120°C (JSIO-400T) |
| Control | Microprocessor PID Control Auto START / STOP Timer |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 and Galvanized Steel (EGI) | |
| Insulation – 50mm thick woven mineral wool | |
| Floor Standing with Caster | |
| Shelf – including perforated stainless steel shelf | |
| Electric | 220±10% VAC 50/60Hz 1-Phase or 380±10% VAC 50/60Hz 3-Phase-4-Wire |
| Plug config. | 30 AMP |
Features
| Performance |
| • Forced Air Convection for quick drying and better temperature uniformity

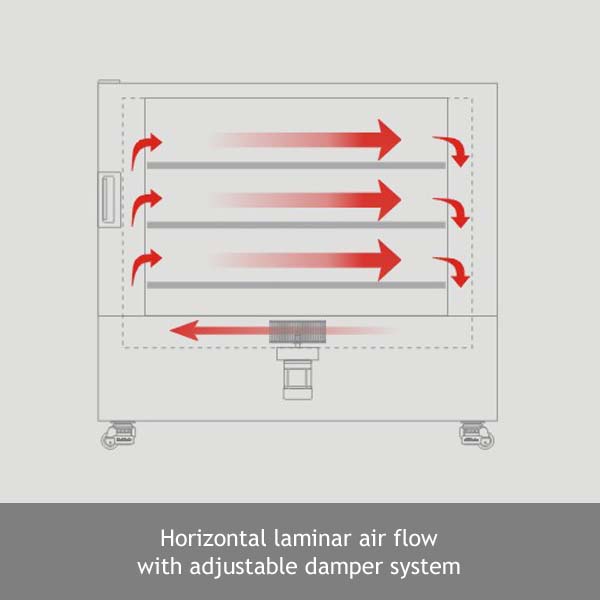

• High capacity powerful sirocco blowers provide big volume of horizontal air flow • Adjustable damper system on each shelf level allow maintaining optimum air circulation throughout the chamber to achieve excellent temperature uniformity and operational condition • Separate heating compartment located on bottom plate prevents contamination and maintenance free • The sliding type shelf is suitable for drying large volumes of samples
|
| Controller |
| • ±0.1°C Digital PID Controller with LED Display
• Automatic START/STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor
|
| Construction |
| • Durable epoxy powder coated metallic casing
• Corrosion resistant Stainless Steel 304 and galvanized steel chamber • Opening size adjustable ventilation damper • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
| Convenience |
| • Floor standing industrial scale big volume oven provides more throughput and productivity of sample treatment
• Corrosion resistant Stainless Steel 304 and galvanized steel chamber • Removable 3 tier shelf • Outer door with silicone gasket and compression door lock • Caster for easy transport
|
| Safety |
| • DUAL OVER TEMP. CUT-OFF
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2 oC above set temperature Analog system cut-off heater 10% above set temp. • MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1 oC above maximum limit • DOOR SENSOR : Door switch cut-off heater and blower when door opened • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Electrical Leakage Breaker |
Model
| DESCRIPTIONS | JSIO-960T |
| Dimension Data | |
| Chamber Volume | 960 Liters |
| Inner Dims. (W x D x H mm) | 1000 x 800 x 1200 |
| Outer Dims. (W x D x H mm) | 1285 x 1035 x 1960 |
| No. of Ventilation Damper | 1 ea |
| Shelf Minimum Spacing | 140mm |
| No. of Shelf Position | 8 |
| No. of Perforated Shelf included | 3 |
| Performance Data | |
| Heating System | Forced Air Convection, Horizontal Air Flow |
| Temp. Range | Amb. +10 oC ~ +250 oC, 0.1 oC resolution |
| Accuracy at 120 oC | ±0.5 oC |
| Uniformity at 120 oC | ±6.0 oC |
| Heat up time to 120 oC | 25 min. |
| Controller | |
| Processor | Digital Microprocessor PID Temperature Controller |
| Display | 4 Digit LED Display |
| Temp. Calibration | Built-in Temperature Calibration |
| Auto-tuning | |
| Temp. Resolution | 0.1 oC |
| Timer Scale | 99 min 59 sec / 99 hr 59 min / 99 dy 23 hr |
| Timer | Automatic START/STOP timer / Continuous Operation |
| Sensor | CLASS A PT-100 Ω Sensor |
| Safety Data | |
| Safety Device | DUAL OVER TEMP. CUT-OFF |
| Digital system cut-off heater and AUDIO VISUAL ALARM | |
| Analog system cut-off heater 10% above set temp. | |
| MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM | |
| CUT-OFF heater and blower when door opened | |
| SENSOR DISCONNECTION ALARM | |
| Over Current CUT-OFF | |
| Material Data | |
| Body | Epoxy Powder Coated SPCC Steel |
| Chamber | Stainless Steel 304 (AISI304) and Galvanized Steel (EGI) |
| Door | High Temperature Foamed Silicone Packing |
| Insulation | 50 mm Woven Mineral Wool |
| Perforated Shelf | Stainless Steel 304 |
| Floor Standing with Caster | |
| Electrical Data | |
| Rated voltage | 380 ± 10% VAC |
| Power frequency | 50 / 60Hz |
| Heater Output | 7.5 kW |
| Nominal power | 7.7 kW 11.7 amp |
| Phase | 3 Phase |
| Plug configuration | 380 VAC 4 Wire |
Ordering Information
| Art No. | Descriptions | Capacity | Elec. Req. | Net Wt. | Ship Wt. |
| JSIO-960T | Heavy Duty Industrial Oven | 960 L | 380 VAC 50/60 Hz 3P 4W | 335 kg | 470kg |
Optional Accessories
| Art No. | Perforated Shelf, Stainless Steel 304 |
| PHS-A16 | for JSIO-600T W990 x D760 mm |
| PHS-A18 | for JSIO-1200T W1090 x D1010 mm |
