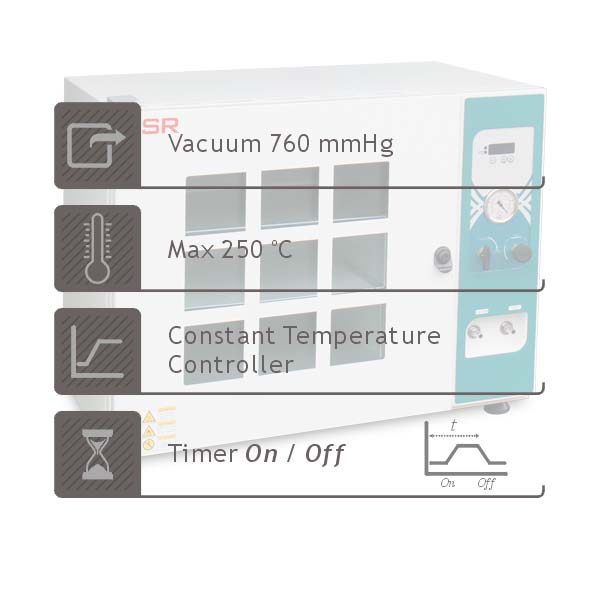

Vacuum Oven Temperature Range ambient +10°C to +250°C Model: JSVO-60T JSR Korea
Oven, Vacuum, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 27, 64 liters.
General Specifications
| Heating | Heat transduction through aluminum shelf |
| Temp. Range | ambient + 10°C ~ 250°C |
| Accuracy | ± 2.0°C at 120°C (Shelf surface) |
| Uniformity | ± 3.0°C at 120°C (Shelf surface) |
| Vacuum | 760 mmHg |
| Control | Microprocessor PID Control Auto START / STOP Timer |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Electropolished Stainless Steel 304 | |
| Insulation – 50mm thick woven mineral wool | |
| Shelf -including 2 ea x Anodized Aluminum | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
| Controller |
| JSC-0D Digital PID Controller
• ±0.1°C Digital PID Controller with LED Display • Automatic START/STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor
|
| Construction |
| • Durable epoxy powder coated metallic casing

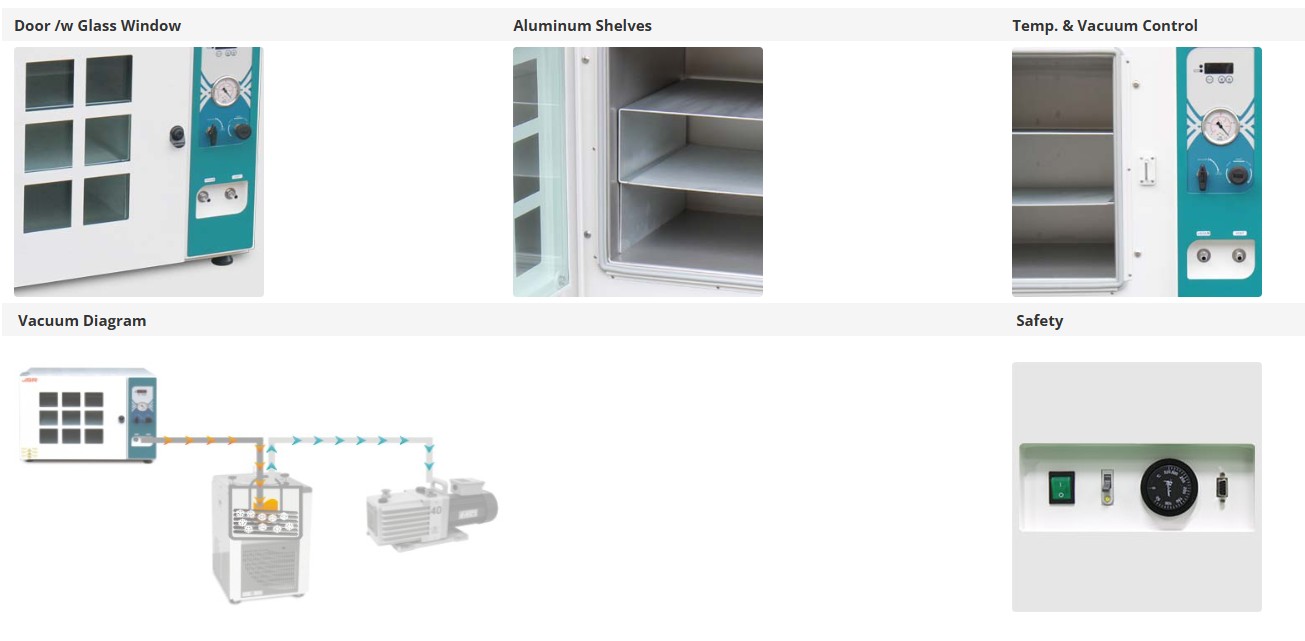

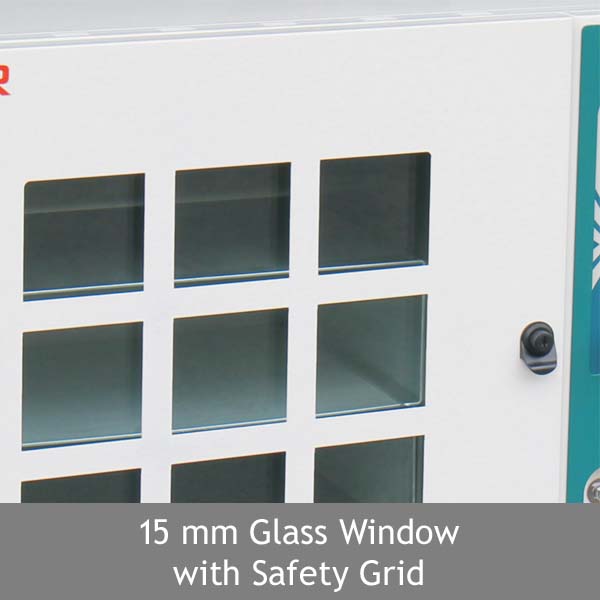

• Corrosion resistant Electro-Polished Stainless Steel 304 chamber • 15 mm thick tempered safety glass window for easy observation of samples and window grill for safety
|
| Performance |

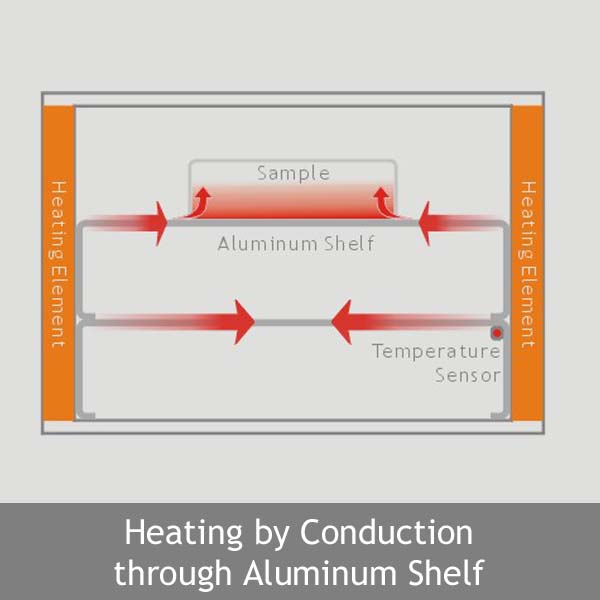

| • Heater from side wall transduces heat through aluminum shelf to maintain uniform temperature over the surface of shelf
• Class A Pt-100 Ω sensor embedded into the aluminum shelf to measure accurate temperature of the shelf • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
| Convenience |
| • Corrosion resistant Stainless Steel 304 (ASTM 304) solid chamber interior

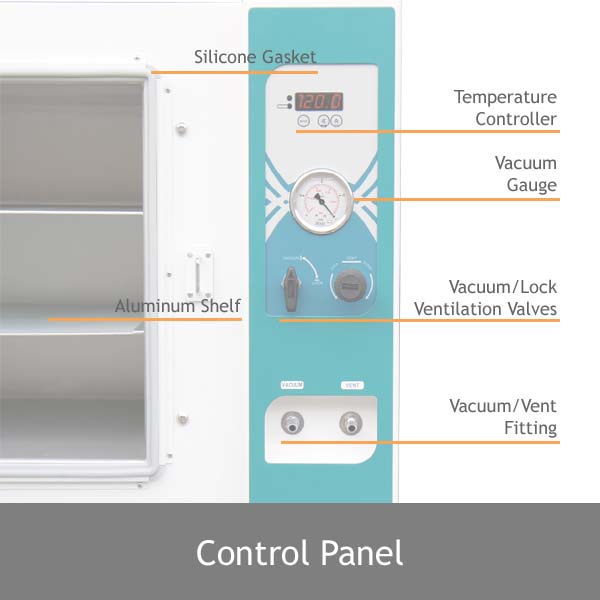

• Door with 15mm thick tempered safety glass window with safety grill • Vacuum tight high density one-piece silicone door gasket • Air tight one touch door latch • Two tier aluminum shelf • Equipped with Vacuum Gauge ~ 760 mmHg • Two way valve to control vacuum and lock • Adjustable needle valve for fine control of vent speed
|
| Safety |
| • DUAL OVER TEMP. CUT-OFF
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. • MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Electrical Leakage Breaker |
Model
| Art No. | JSVO-60T | |
| Chamber Volume | 64 L | |
| Dimensions | Inner | 400 x 400 x 400 |
| W x D x H mm | Outer | 765 x 575 x 635 |
| Glass Window | W350 x H350 | |
| 15 mm thick Tempered Safety Glass | ||
| Temperature Range | ambient +10°C to 250°C | |
| Accuracy at 120°C | ± 2.0°C | |
| Uniformity at 120°C | ± 3.0°C | |
| Maximum Vacuum | 760 mmHg | |
| Fitting | Vacuum/Vent Ø 11 mm Hose barb | |
| Valves | Vacuum/Lock : 2-Way Valve Vent : Adjustable Needle Valve | |
| No. of Shelves | 2 | |
| Heater Capacity | 4 x 700 W | |
| Power Rating | 13.2 Amp | |
| Power Plug | CEE 7/7 Schuko European Standard or BS 1363 British Plug | |
Ordering Information
| Art No. | Descriptions |
Capacity |
Elec. Req. |
Net Wt. |
Ship Wt. |
| JSVO-60T | Vacuum Oven |
64 L |
220 VAC 50/60 Hz |
86 kg |
94 kg |
Optional Accessories
| Art No. | Aluminum Shelf |
| PHS-A91 | for JSVO-30T W295 x D250 mm |
| PHS-A92 | for JSVO-60T W395 x D350 mm |
| Art No. | Vacuum Pump |
| W2V10 | Rotary Vane Vacuum Pump
100L/min 5×10-4 Torr Mfr. Woosung Vacuum, Korea 220VAC |
| MZ2C NT | Chemical Resistant Diaphragm Vacuum Pump
Mfr. Vacuubrand, Germany 220VAC |
| Art No. | Cold Trap |
| JSCT-35C | Cold Trap Bath, – 35°C, 7.2 L |

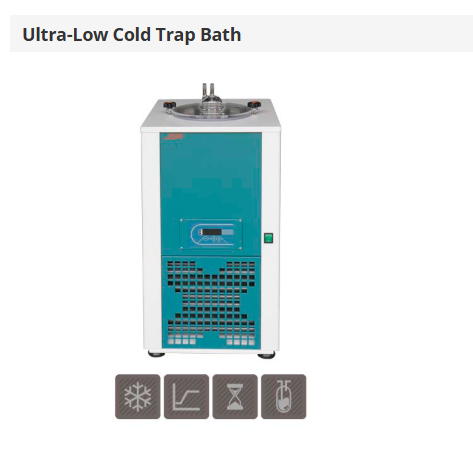

| JSCT-55ULT | Ultra Low Temp. Cold Trap Bath, – 55°C, 7.2 L |
| JSCT-85ULT | Ultra Low Temp. Cold Trap Bath, – 85°C, 7.2 L |
| Art No. | |
| OHG-001 | Glass Trap, 500 ml |
| OHV-001 | High Vacuum Hose, ID 9 mm x OD 24 mm x 1 meter |
