Description
Tabletop Refrigerated Incubator (Programmable) Temp. Range ambient +0°C to +70°C Model: JSBI-100CP JSR Korea
Refrigerated Incubator, Tabletop, Temperature Range +0 °C to +70 °C, Chamber Volume 50, 100 liters.
General Specifications
| Heating | Forced Air Convection |
| Refrigeration | CFC Free air cooled hermetically sealed compressor |
| Temp. Range | +0 oC ~ 70 oC |
| Accuracy | ± 0.2 oC at 20.0 oC |
| Uniformity | ± 0.5 oC at 20.0 oC |
| Controller | JIC-CON 5th Generation Digital PID Temperature Controller |

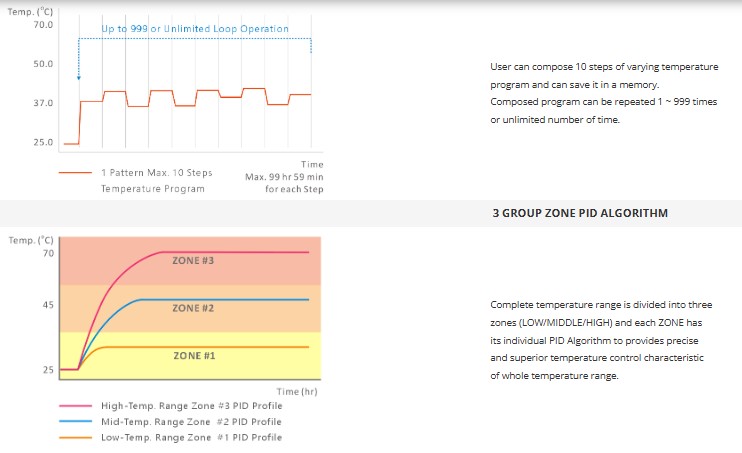

| 10 Step Temperature Programming Capability, 1 ~ 999 times repeatable | |
| 3 Group Zone PID Temperature Control Algorithm | |

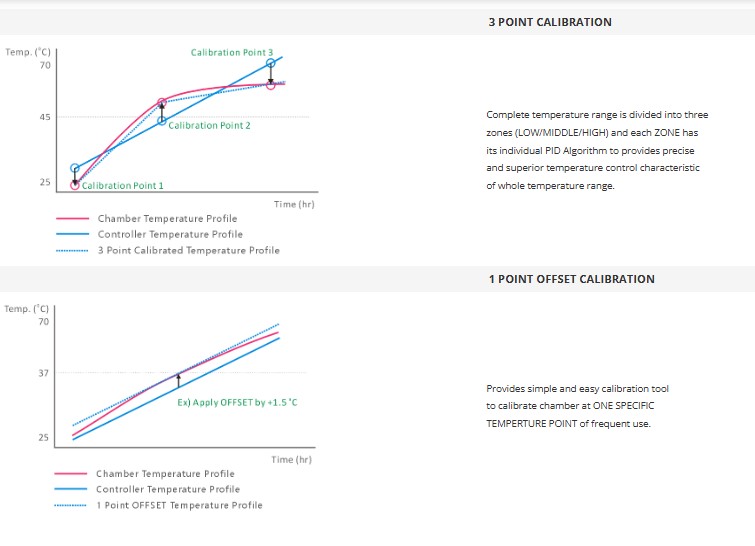

| 3-Point Temperature Calibration | |
| 1-Point Temperature Offset Calibration | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over-Cooling Cut-Off | |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| Inner Door – 5 mm thick Tempered Safety Glass | |
| including PVC coated wire shelf | |
| optional perforated stainless steel shelf | |
| Electrical Data | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
Features
1 Pattern 10 Step PROGRAM
| Performance |
| • Control Temperature Range from +0℃ to +70℃
• Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • Air cooled refrigeration system with hermetically sealed compressor
|
| Controller |
| • DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER
Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • Delay starter to protect compressor. • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
| Construction |
| • Durable epoxy powder coated metallic casing
• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples
|
| Convenience |
| • Outer door with self-adhesive magnetic packing
• Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing
|
| Safety |
| • PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM
• DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater, compressor and AUDIO VISUAL ALARMS ALARM HIGH : +5 oC above set temp. ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker |
Model
| Model | JSBI-100CP | |
| Dimension Data | ||
| Chamber Volume | 100 Liters | |
| Inner Dims. (W x D x H mm) | 450 x 450 x 500 | |
| Outer Dims. (W x D x H mm) | 630 x 690 x 920 | |
| Inner Glass Door (W x H mm) | 461 x 677 | |
| No. of Shelf Positions | 16 ea by 25mm spacing | |
| No. of Shelf included | 2 ea | |
| Performance Data | ||
| Heating System | Forced Air Convection | |
| Cooling System | Hermetically Sealed Air Cooled Compressor | |
| Temp. Range | +0 oC ~ +70 oC | |
| Accuracy | ±0.2 oC at +20.0 oC | |
| Uniformity | ±0.5 oC at +20.0 oC | |
| Electrical Data | ||
| Rated voltage | 220 ± 10% VAC | |
| Power frequency | 50 / 60Hz | |
| Heater Output | 700 W | |
| Nominal power | 1.3 kW 6.0 amp | |
| Phase | 1 Phase | |
| Plug configuration | CEE 7/7 Schuko or BS 1363 | |
Ordering Information
| JSBI-100CP
|
Tabletop Refrigerated Incubator, 100 L
Programmable including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz
|
Optional Accessories
| Art. No. | Descriptions |
| PHS-A23 | Perforated Shelf, Stainless Steel 304, W370 x D340 mm for JSBI-050CP |
| PHS-C09 | PVC Coated Wire Shelf, W370 x D340 mm for JSBI-050CP |
| PHS-A24 | Perforated Shelf, Stainless Steel 304, W420 x D430 mm for JSBI-100CP |
| PHS-C10 | PVC Coated Wire Shelf, W420 x D430 mm for JSBI-100CP |
| PHS-A99 | Shelf Support, Set of 4 ea |
