Description
Microcentrifuge 6,200 rpm Fixed Angle Rotor for 1.5 ml or 2.0 ml x 8 holes PCR Strip Rotor for 0.2 ml x 32 tubes 4 PCR Strips JSCF-M8 JSR Korea
Micro Centrifuge is designed for quick and pulse spin down up to 6,200 rpm / RCF 1,800 x g and offers your convenience of tool-free interchangeable rotors and adaptors for 0.2 ml and 0.5 ml tubes.
Features
| Performance Speed and Capacity |
| Max. 6,200 rpm / RCF 1,800 x g
Fixed Angle Rotor for 1.5 ml or 2.0 ml x 8 holes PCR Strip Rotor for 0.2 ml x 32 tubes, 4 PCR Strips
|
| Construction |
| Silent DC motor
Clear polycarbonate dome lid ABS plastic body with low gravitational centered design Rubber bottom base
|
| Convenience |
| Tool free one-touch rotor replacement
Accommodates various tubes 0.2ml, 0.5ml, 1.5ml and 2.0 ml Spring hinged lifting lid
|
| Safety |
| Two way safety door switch |
Specifications
| Speed | : Max. 6,200 rpm |
| Max. RCF | : 1,800 x g |
| Capacity | : 8 x 0.2 / 0.5 / 1.5 / 2.0 ml tubes, 4 x 0.2 ml PCR Strips |
| Rotor Configuration | |
| Angle Rotor | : 8 Holes Fixed-Angle Rotor for 0.5 / 1.5 / 2.0 ml micro-tubes |
| PCR Strip Rotor | : 32 Holes PCR Strip Rotor for 0.2 ml PCR Strip or Tubes |
| Tube Adaptors | : including eight (8) x 0.2 ml and 0.5 ml tube adaptors |
| Safety | : Two-Way Door Limit Switch |
| Material | : Body – ABS Plastic |
| : Rotor – ABS Plastic | |
| Electric | : 230±10% VAC 50/60 Hz 1-Phase |
| Plug config. | : CEE 7/7 Schuko or BS 1363 |
Model
| Art. No. | JSCF-M8 |
| Performance Data | |
| Speed | Max. 6,200 rpm |
| Max. RCF | 1,800 x g |
| Capacity | 8 x 0.2 / 0.5 / 1.5 / 2.0 ml tubes, 4 x 0.2 ml PCR Strips |
| Speed Control | Automatic / Constant speed |
| Rotor Configuration | |
| Angle Rotor | 8 Holes Fixed-Angle Rotor for 0.5 / 1.5 / 2.0 ml micro-tubes |
| PCR Strip Rotor | 32 Holes PCR Strip Rotor for 0.2 ml PCR Strip or Tubes |
| Tube Adaptors | Including eight (8) x 0.2 ml and 0.5 ml tube adaptors |
| Motor | |
| Type | DC Motor |
| Power | 8 Watt |
| Rotating Direction | Clockwise |
| Safety Data | |
| Safety Device | Two-Way Door Limit Switch |
| Material Data | |
| Lid | Polycarbonate |
| Body | ABS |
| Rotor | ABS |
| Electrical Data | |
| Rated voltage | 230 ± 10% VAC |
| Power frequency | 50/60Hz |
| Nominal power | 8 Watt |
| Phase (Nominal voltage) | 1 Phase |
| Plug configuration | CEE 7/7 Schuko or BS 1363 |
| Usable Condition | |
| Temp. & Humidity | 5oC – 40 oC, 80% RH |
| Packaging Data | |
| Shipping Dims. (W x D x H) | 250 x 200 x 220 mm |
| Type of packaging | Carton |
| Net Weight | 1.4 kg |
| Shipping Weight | 1.7 kg |

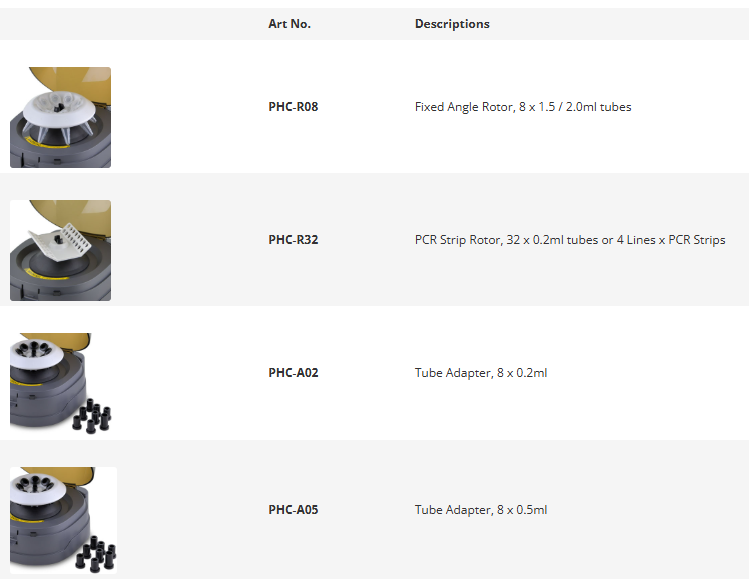

Ordering Information
| Art. No. | Descriptions | Voltage |
| JSCF-M8 | Micro Centrifuge, 6,200 rpm | 230 VAC 1 ph 50/60 Hz |
| including | ||
| PHC-R08 Fixed Angle Rotor, 8 x 1.5 / 2.0ml tubes | ||
| PHC-R32 PCR Strip Rotor, 32 x 0.2ml tubes or 4 Lines x PCR Strips | ||
| PHC-A02 Tube Adapter, 8 x 0.2ml | ||
| PHC-A05 Tube Adapter, 8 x 0.5ml | ||
Optional Accessories
