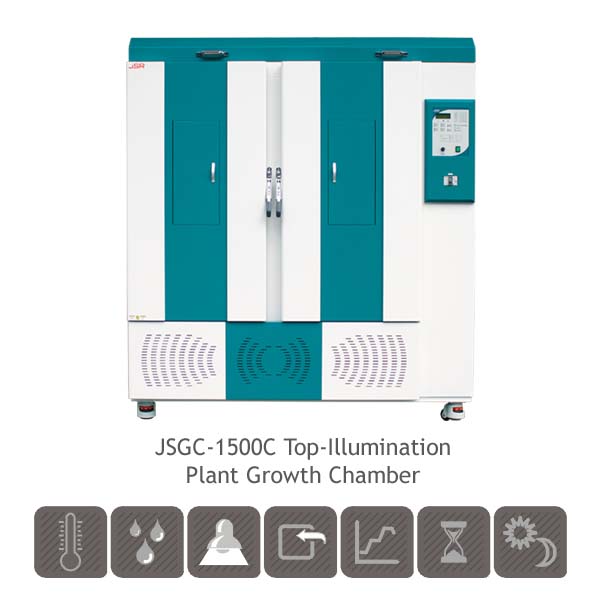

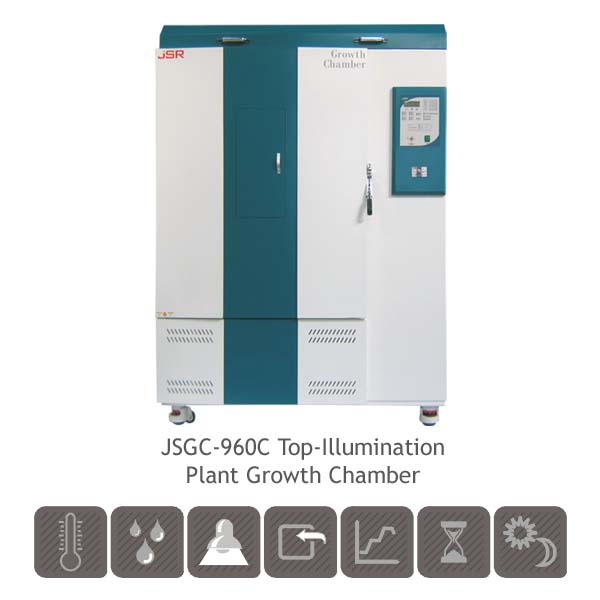

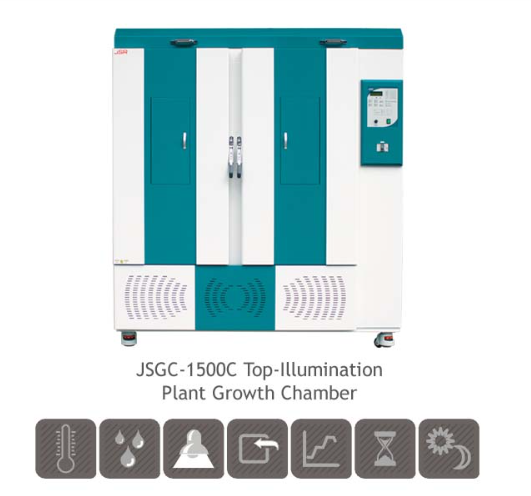

JSGC-Series Growth Chamber Top Illumination Model: JSGC-420C JSR Korea

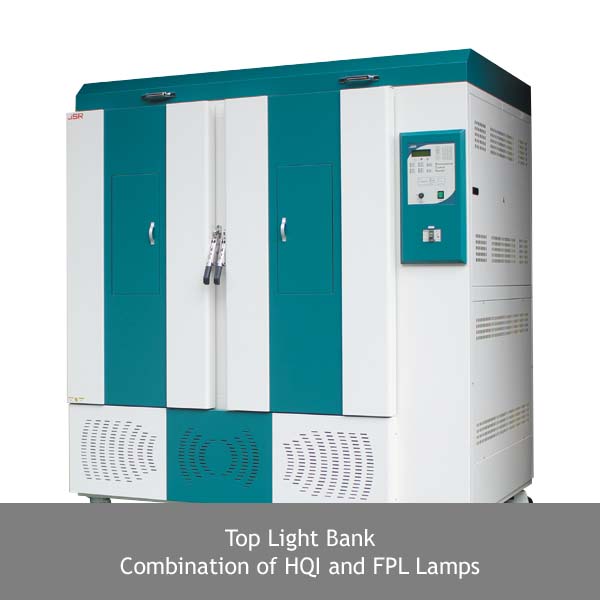

JSGC-Series Top Illumination Plant Growth Chamber provides reliable controlled climatic condition of temperature, humidity, lighting and CO2 concentration Ideal to growing plant, plant tissue culture or any other laboratory experiments needs controller climatic simulation. Various choice of capacity from 432L ~ 1512 L suitable to growing larger plants up to 1.2 m. Light bank on the top with HQI and fluorescent lamps provide light intensity up to 40,000 LUX.
Specifications
| Heating | Forced Air Convection |
| Cooling | CFC Free Air Cooled Compressor |
| Humidifier | Water Boiling Humidifier |
| Temp. Range | +0°C ~ 60°C (Light Off JSGC-960C) |
| +10°C ~ 60°C (Light On JSGC-960C) | |
| Accuracy | ± 0.3°C at 20.0°C, 60% RH |
| Uniformity | ± 1.0°C at 20.0°C, 60% RH |
| Temp. Sensor | Class A Pt-100 Ω Sensor |
| Humidity Range | 30 ~ 98% RH (Sensor Range) |
| 30 ~ 85% RH (Control Range) | |
| Accuracy | ± 3.0 % RH at 20.0°C, 60% RH |
| Humidity Sensor | Electronic Sensor |
| Illumination | 0 ~ 40,000 Lux by 6 to 8 Step Combination |
| Light Sensor | Lux Meter 1 Lux resolution |
| CO2 Range | ambient to 5,000 ppm ( ~ 20 %) |
| CO2 Sensor | Dual Wavelength NDIR Diffusion |
| Controller | Programmable PID Control |
| 11 Segment 999 Cycle Repeat | |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Low Water Level Cut-Off | |
| Material | Body : Epoxy Powder Coated Steel |
| Chamber : Stainless Steel 304 | |
| Double Layer Vacuum Glass Ceiling on Light Bank | |
| Including PVC Coated Wire Shelf | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Direct connect to 60 Amp ELB Mains |
Model
| Art No. | JSGC-420C | |
| Chamber Volume (Capacity) | 432 L | |
| Dimensions | Inner | 600 x 600 x 1200 |
| W x D x H mm | Outer | 1180 x 850 x 2080 |
| Temperature | Range | Light Off : +0°C ~ 60°C Light On :+10°C ~ 60°C w/o Humidification |
| Accuracy | ± 0.3°C at 20.0°C, 60% RH (Light Off) | |
| Uniformity | ± 1.0°C at 20.0°C, 60% RH (Light Off) | |
| Humidity | Range | 30 ~ 98% RH (Sensor Range) 30 ~ 85% RH (Control Range) |
| Accuracy | ± 3.0 % RH at 20.0°C 60% RH | |
| Uniformity | ± 6.0 % RH at 20.0°C 60% RH | |
| Illumination | Range | 0 ~ 40,000 Lux |
| Steps | 6 Step Combination | |
| Lamp | 2 x 150 Watt HQI Lamps | |
| Configuration | 4 x 55 Watt FPL | |
| CO2 Control | Conc. Range | ambient ~ 5,000 ppm (ambient ~ 20 %) |
| Accuracy | ± 50 ppm | |
| Controller | Programmable PID Control 11 segments 999 cycle repeatable | |
| Sensors | Temp | Class A Pt-100 Ω Sensor |
| Humidity | Electronic Humidity Sensor | |
| CO2 | High Precision Dual Wavelength NDIR Diffusion Sensor | |
| Light | Lux Meter | |
| Number of shelves/Max. | Mar-37 | |
| Heater Capacity | 4.0 kW | |
| Refrigeration System | CFC-Free Air Cooled Hermetically Sealed Compressor | |
| Electric Requirement | 220VAC 50/60Hz 1P | |
| Power Rating | 30 Amp | |
| Power Plug | 30 AMP | |

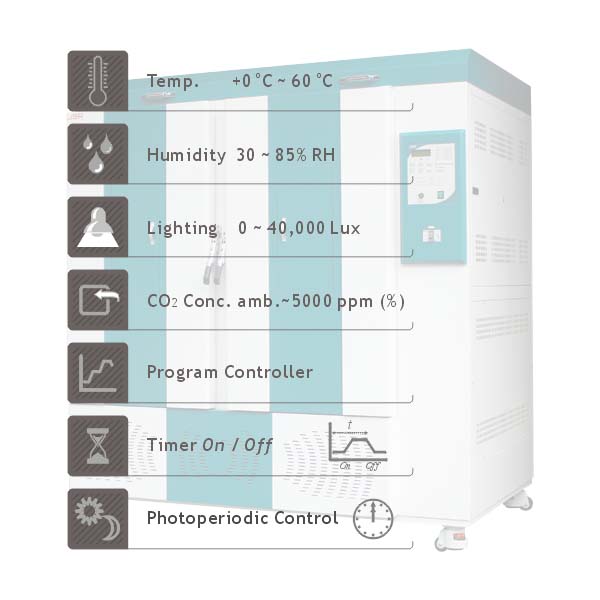

Features
| Construction |
| Durable epoxy powder coated metallic casing
Corrosion resistant Stainless Steel 304 chamber Durable Stainless Steel 304 Sheath Heater and Copper-Aluminum fin evaporator Removable and height adjustable shelf Built-in humidifier and automatic water supply Double layer vacuum tempered safety glass ceiling on light bank
|
| Performance |
| Forced air circulation of controlled temperature and humidity to achieve excellent thermal uniformity
Durable Stainless Steel 304 Sheath Heater and copper-aluminum finned evaporator Temperature control within ± 0.1°C resolution Humidity control within ±1.0% RH resolution Lighting control from 0 ~ 40,000 Lux by 6 to 8 Step light intensity for photoperiodic Day-Night simulation Lamp-on-Delay System by turn on lamp one by one which provides gradual increase of light to eliminate sudden light intensity change CO2 concentration control within ±1 ppm (1%) resolution Separate heating and cooling compartment prevents contamination and maintenance free Cooling system with hermetically sealed compressor
|
| Convenience |
| Outer door with self adhesive magnetic packing
Door glass window for easy observation of sample during experiment. Removable and height adjustable shelf by 25mm spacing Easy to access Light Bank System for convenient maintenance Corrosion resistant Stainless Steel 304 (ASTM 304) chamber Auto-defrost system, user settable interval and time Built-in casters for easy transport
|
| Safety |
| DUAL OVER TEMP. CUT-OFF
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit OVER COOLING. CUT-OFF Digital system automatically cut-off compressor in case -3°C below set temperature SENSOR DISCONNECTION ALARM LOW WATER LEVEL ALARM AND CUT-OFF HUMIDIFIER DRY-BURN PROTECTION OVER CURRENT CUT-OFF : Electric Leakage Breaker |
Ordering Information
| Art No. | Descriptions | Elec. Req. | Capacity | Net Wt. | Ship Wt. |
| JSGC-420C | Growth Chamber, Top Illumination | 220 VAC 50/60 Hz | 432 L | 240 kg | 360 kg |
