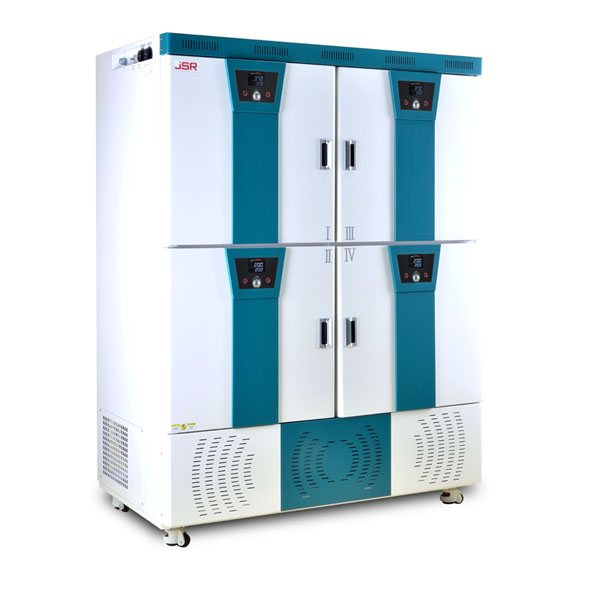

Four Chamber Incubator 4 x 125L Model: JSMI-04C JSR Korea
Heated, Refrigerated Incubator, 125 Liter Four Chamber, 10 Step Programmable, Light ON/OFF Program Control.
| Download Data Sheet | JSMI-04C |
| Product Selection Guide | |
| Temperature Range | +0 oC ~ 70 oC |
| Heated | O |
| Refrigerated | O |
| Fixed Temperature Control | O |
| 10-Step Temperature Program | X |
| 10-Step Light ON/OFF Program | X |
General Specifications
| Heating | Forced Air Convection |
| Refrigeration | CFC Free air cooled hermetically sealed compressor |
| Temp. Range | ambient +5 oC ~ 70 oC [ JSMI-04T ]
+0 oC ~ 70 oC [ JSMI-04C, 04CP, 04CPL ] |
| Accuracy | ± 0.2 oC |
| Uniformity | ± 1.0 oC |
| Controller | JIC-CON 5th Generation Digital PID Temperature Controller |
| 10 Step Temperature Programming Capability, 1 ~ 999 times repeatable [ JSMI-04CP, CPL ] | |
| Light ON/OFF Program on each program step for Day-Night simulation [ JSMI-04CPL ] | |
| 3 Group Zone PID Temperature Control Algorithm | |
| 3-Point Temperature Calibration | |
| 1-Point Temperature Offset Calibration | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over-Cooling Cut-Off | |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| Inner Door – 5 mm thick Tempered Safety Glass | |
| including PVC coated wire shelf | |
| optional perforated stainless steel shelf | |
| Electrical Data | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
Features

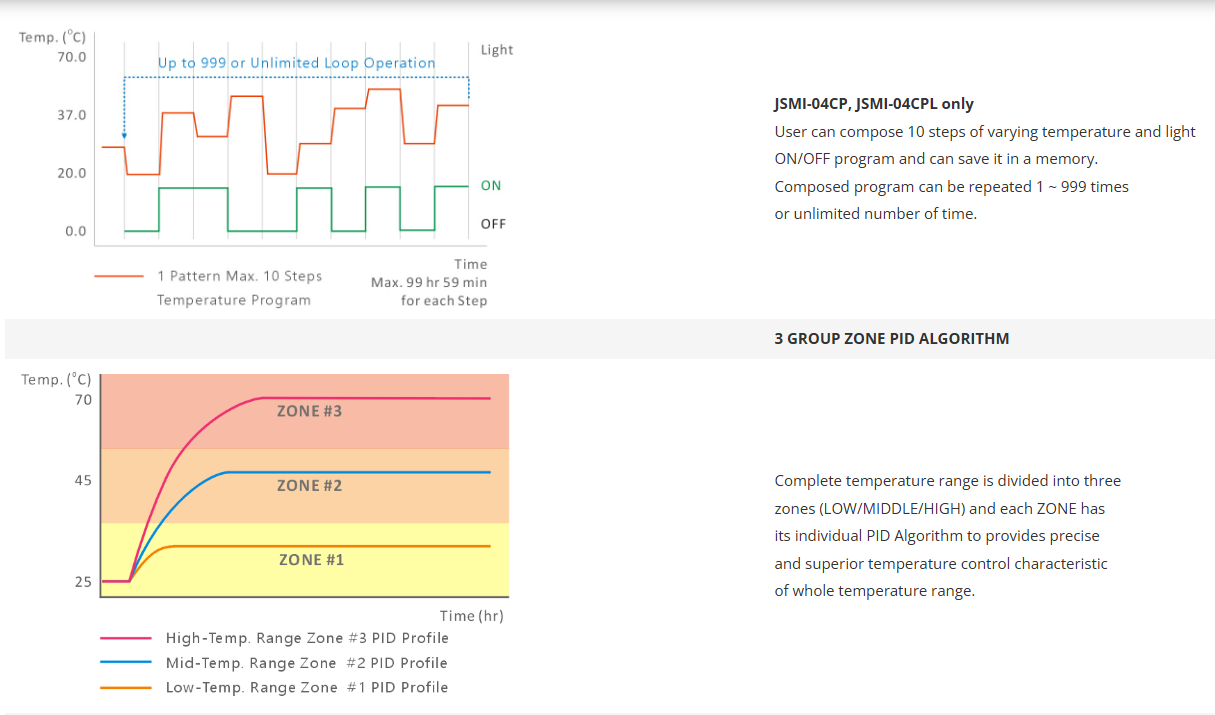

10 Step Temperature and Day/Night PROGRAM
| Performance |
| • Control Temperature Range
JSMI-04T from ambient +5℃ to +70℃ JSMI-04C, 04CP, 04CPL from +0℃ to +70℃ • Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • Air cooled refrigeration system with hermetically sealed compressor |
| Controller |
| • DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER
Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable [ JSMI-04CP, 04CPL only ] • Light ON/OFF Program on each program step for Day-Night simulation [ JSMI-04CPL only ] • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • Delay starter to protect compressor. • RS-232C PC COMMUNICATION INTERFACE [OPTION] |
| Construction |
| • Durable epoxy powder coated metallic casing

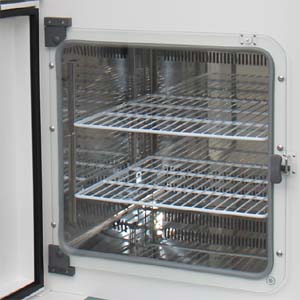

• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples |
| Convenience |
| • Outer door with self-adhesive magnetic packing

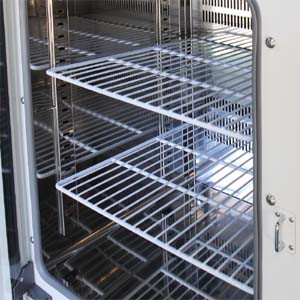

• Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing
|
| Safety |
| • PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM
• DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater, compressor and AUDIO VISUAL ALARMS ALARM HIGH : +5 oC above set temp. ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker |
Model
| Model | JSMI-04C |
| Dimension Data | |
| Chamber Volume | 4 chamber x 125 L |
| Inner Dims. (W x D x H mm) | 500 x 500 x 500 |
| Outer Dims. (W x D x H mm) | 1365 x 830 x 1815 |
| No. of Shelf Positions | 16 ea |
| No. of Shelf included | 8 ea |
| Performance Data | |
| Heating System | Forced Air Convection |
| Cooling System | Compressor |
| Temp. Range | +0 oC ~ +70 oC |
| Accuracy at +20.0 oC | ±0.2 oC at +20.0 oC |
| Uniformity at +20.0 oC | ±1.0 oC at +20.0 oC |
| Lamp Type, Length | none |
| Lamp Configuration | none |
| Controller | |
| Processor | Digital Microprocessor PID Temperature Controller |
| 10 Step Temperature Program | n/a |
| Light ON/OFF Program | n/a |
| Electrical Data | |
| Rated voltage | 220 ± 10% VAC |
| Power frequency | 50 / 60Hz |
| Heater Output | 4 x 1.0 kW |
| Nominal power | 6.8 kW 30.8 amp |
| Phase | 1 Phase |
| Plug configuration | CEE 7/7 Schuko or BS 1363 ( Two separate power cords for two each chambers ) |
Ordering Information
| Art. No. | Descriptions | Voltage |
| JSMI-04C | 125 L Four Chamber Refrigerated Incubator | 220 VAC 1~ ph 50/60Hz |
Optional Accessories
| Art. No. | Descriptions |
| PHS-A06 | Perforated Shelf, Stainless Steel 304, W470 x D480 mm for JSMI-04 |
| PHS-C05 | PVC Coated Wire Shelf, W470 x D480 mm for JSMI-04 |
| PHS-A99 | Shelf Support, Set of 4 ea |
