Description

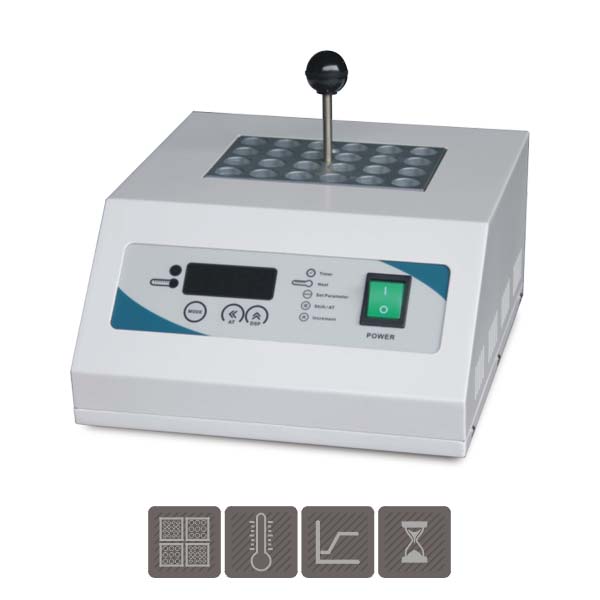

Dry Block Heater ambient + 10°C ~ 180°C JSBL-02t JSR Korea

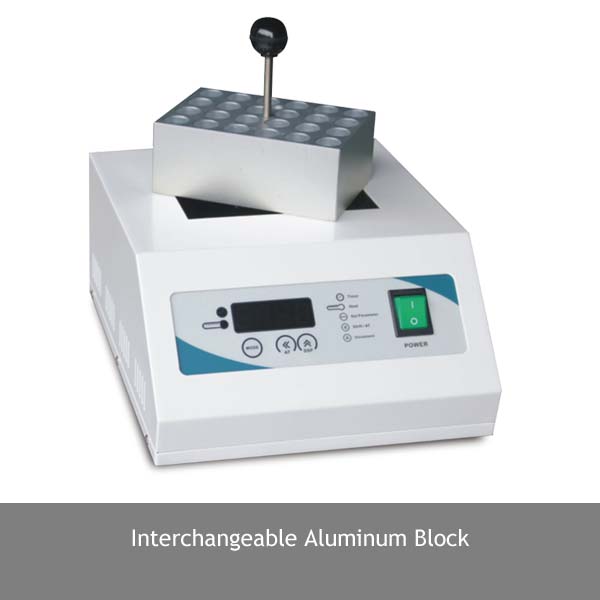

JSBL-Series Dry Block Heater provides precise and constant temperature control source in the laboratory by heating interchangeable modular aluminum block. Ideal for microbiology and clinical laboratories for incubation, enzyme assay, inactivation, boiling, wet washing, extraction, sample concentration and many other applications. The anodized modular aluminum blocks accommodate PCR tubes, eppendorf tubes, microcentrifuge tubes. Heating Block hold 1, 2, 4 interchangeable modular blocks to accommodate a variety of vessels.
Specifications
| Heating | Heat transduction through aluminum block |
| Temp. Range | ambient + 10°C ~ 180°C |
| Accuracy | ± 0.5°C at 60.0°C |
| Uniformity | ± 3.0°C at 60.0°C |
| Control | Microprocessor PID Control Auto START / STOP Timer |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Bath – Stainless Steel 304 | |
| Block – Anodized Aluminum | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko |
Model: JSBL-02T
| Art No. | JSBL-02T | ||
| Modular Block Capacity | 2 | ||
| Dimensions | Inner | 130 x 90 x 50 | |
| W x D x H mm | Outer | 220 x 270 x 110 | |
| Block | 90 x 65 x 50 | ||
| Temperature Range | ambient+5°C to 180°C | ||
| Accuracy at 60.0°C | ± 0.5°C | ||
| Uniformity at 60.0°C | ± 3.0°C | ||
| Heat up time to 60.0°C | 10 min. | ||
| Heater Capacity | 200 Watt | ||
| Power Rating | 0.9 Amp | ||
| Power Plug | E 7/7 Schuko European Standard | ||

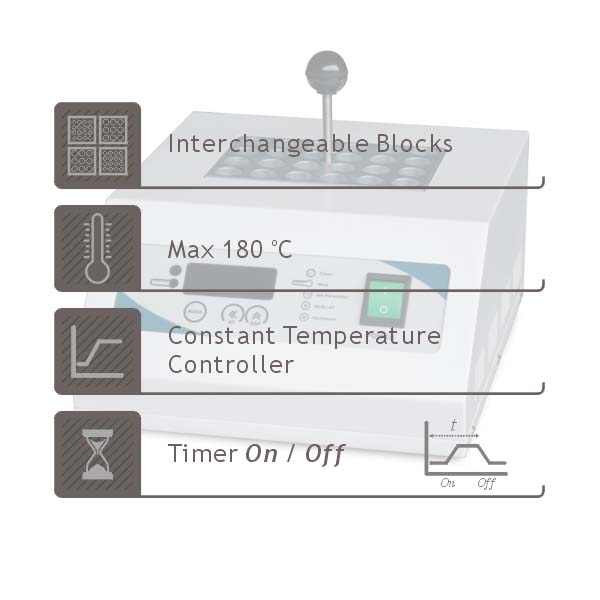

Features
| Controller |
| JSC-0D Digital PID Controller
±0.1°C Digital PID Controller with LED Display Automatic START/STOP timer Adjustable timer scale 99min 59sec / 99hr 59min / 99day 23hr or continuous operation Temperature calibration Auto-tuning function Class A Pt-100 Ω sensor
|
| Construction |
| Durable epoxy powder coated metallic casing
Corrosion resistant Stainless Steel 304 bath Anodized Modular Aluminum Block
|
| Performance |
| Heater under the bottom transduce heat trough aluminum block and to maintain uniform temperature
Class A Pt-100 Ω sensor embedded into the modular block to measure accurate temperature of the aluminum block Maintain block temperature from ambient + 5°C to 180°C Excellent control accuracy within ± 0.5°C and thermal uniformity within ± 3.0°C
|
| Convenience |
| Corrosion resistant Stainless Steel 304 (ASTM 304) solid bath interior
Wide range of interchangeable modular blocks as accessories for all applications Block extraction tool is supplied with , allowing blocks to be removed easily Aluminum block with additional thermometer hole to measure and compare actual temperature of block
|
| Safety |
| DUAL OVER TEMP. CUT-OFF
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit SENSOR DISCONNECTION ALARM OVER CURRENT CUT-OFF : Fuse
|
Ordering Information
| Art No. | Descriptions | Block Capacity | Elec. Req. | Net Wt. | Ship Wt. |
| JSBL-01T | Dry Block Heater | 1 | 220 VAC 50/60 Hz | 3.5 kg | 4.0 kg |
| Optional Accessories | |

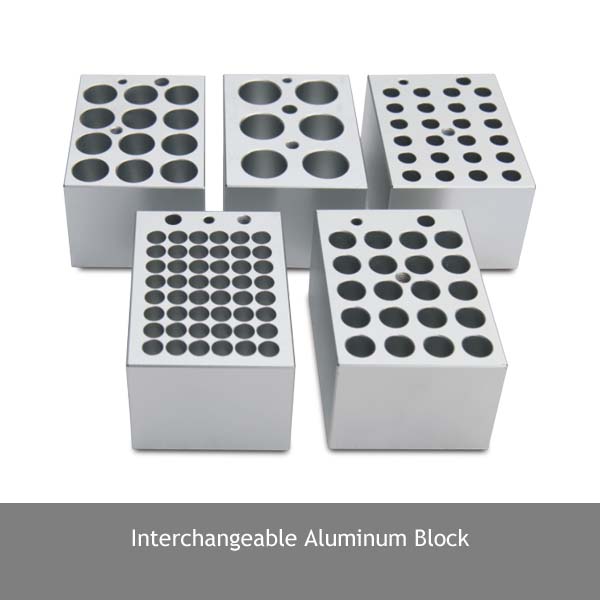

| Art No. | Modular Aluminum Block |
| PHA-02B | 48 x 0.2 ml PCR Tubes or Strips |
| PHA-05B | 24 x 0.5 ml PCR Tubes or Strips |
| PHA-15B | 20 x 1.5 ml Tubes |
| PHA-16B | 12 x ∅16 mm Tubes |
| PHA-24B | 6 x ∅24 mm Tubes |
