Description
Compact Oven Temperature Range ambient +10°C to +250°C Model: JSOF-030E JSR Korea
Oven, Forced or Natural (Gravity) Convection, Temperature Range ambient +10 °C to +250 °C, Chamber Volume 30, 50 liters.
General Specifications
| Heating | JSOF-xxxE Forced Air Convection |
| JSON-xxxE Grativy Air Convection | |
| Temp. Range | ambient + 10°C ~ 250°C |
| Accuracy | ± 0.2°C at 180°C (JSOF-030S) |
| Uniformity | ± 1.0°C at 180°C (JSOF-030S) |
| Control | Microprocessor PID Control Auto START / STOP Timer |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| Insulation – 50mm thick woven mineral wool | |
| Shelf -including stainless steel wire shelf | |
| optional perforated stainless steel shelf | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
Model
| Art No. | JSOF-030E | |
| Hot Air Circulation | Forced Convection | |
| Chamber Volume | 33 L | |
| Dimensions | Inner | 350 x 270 x 350 |
| W x D x H mm | Outer | 510 x 570 x 660 |
| Temperature Range | ambient +10°C to 250°C | |
| Accuracy at 180°C | ± 0.2°C | |
| Uniformity at 180°C | ± 1.0°C | |
| Heat up time to 180°C | 15 min. | |
| No. of Shelves / Max. No. | 2 / 10 | |
| No. of Ventilation damper | 1 | |
| Heater Capacity | 800 W | |
| Power Rating | 3.8 Amp | |
| Power Plug | CEE 7/7 Schuko European Standard or BS 1363 British Plug | |
Features
| Controller |
| JSC-0D Digital PID Controller
• ±0.1°C Digital PID Controller with LED Display • Automatic START/STOP timer • Adjustable timer scale 99min 59sec / 99hr 59min / 99 day 23hr or continuous operation • Temperature calibration • Auto-tuning function • Class A Pt-100 Ω sensor
|

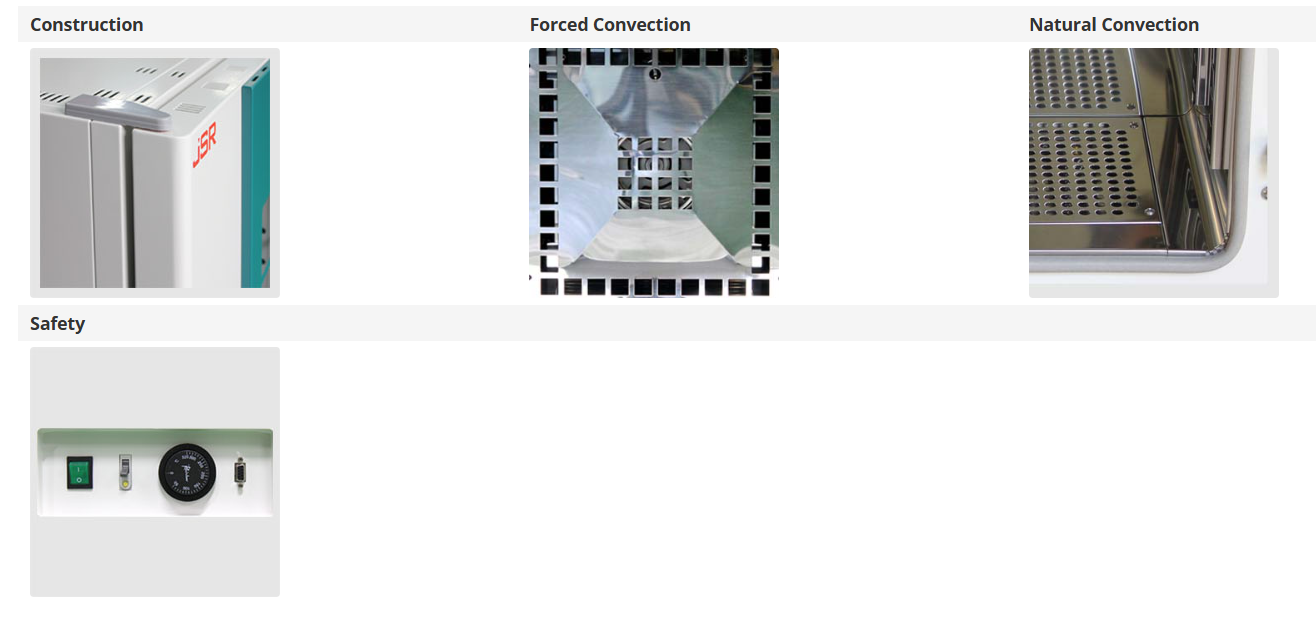

| Construction |
| • Durable epoxy powder coated metallic casing
• Ventilation damper • Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage
|
| Performance |

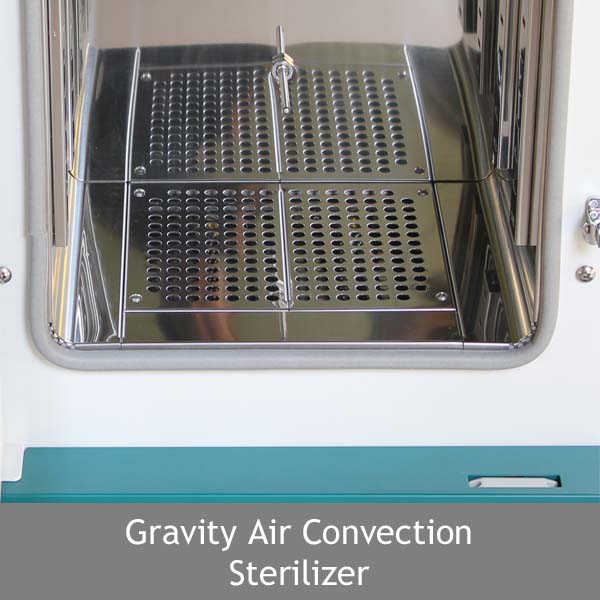

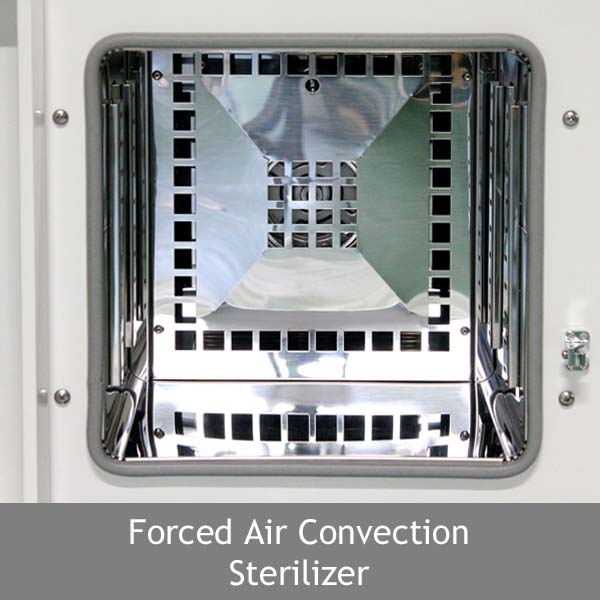

| • Choice of Forced or Gravity air convection
• Separate heating compartment prevents contamination and maintenance free • 50mm thick high thermal efficiency mineral wool with woven aluminum barrier sheet saves energy and less dust
|
| Convenience |
| • Stainless Steel 304 Chamber with seamless round cornered edge allows easy cleaning and prevents leakage
• Removable and height adjustable shelf by 25mm spacing • Easy to open and air-tight one touch door latch • Opening size adjustable ventilation damper • Non-contact door switch cut-off heater and/or blower
|
| Safety |
| • DUAL OVER TEMP. CUT-OFF
Digital system cut-off heater and AUDIO VISUAL ALARM in case +2°C above set temperature Analog system cut-off heater 10% above set temp. • MAX TEMP CUT-OFF heater and AUDIO VISUAL ALARM when +1°C above maximum limit • DOOR SENSOR : Door switch cut-off heater and blower when door opened • SENSOR DISCONNECTION ALARM • OVER CURRENT CUT-OFF : Electrical Leakage Breaker
|
Ordering Information
| Art No. | Descriptions |
Capacity |
Elec. Req. | Net Wt. | Ship Wt. |
| JSOF-030E | Compact Oven, Forced Convection |
33 L |
220 VAC 50/60Hz | 35 kg | 41 kg |
Optional Accessories
| Art No. | Perforated Shelf, Stainless Steel 304 |
| PHS-A02 | for JSOF-030E W320 x D250 mm |
| PHS-A03 | for JSOF-050E W370 x D280 mm |
| PHS-A02 | for JSON-030E W320 x D250 mm |
| PHS-A03 | for JSON-050E W370 x D280 mm |
| Art No. | Wire Shelf, Stainless Steel 304 |
| PHS-B02 | for JSOF-030E W320 x D250 mm |
| PHS-B03 | for JSOF-050E W370 x D280 mm |
| PHS-B02 | for JSON-030E W320 x D250 mm |
| PHS-B03 | for JSON-050E W370 x D280 mm |
| PHS-A99 | Shelf Support, Set of 4 |
