Description

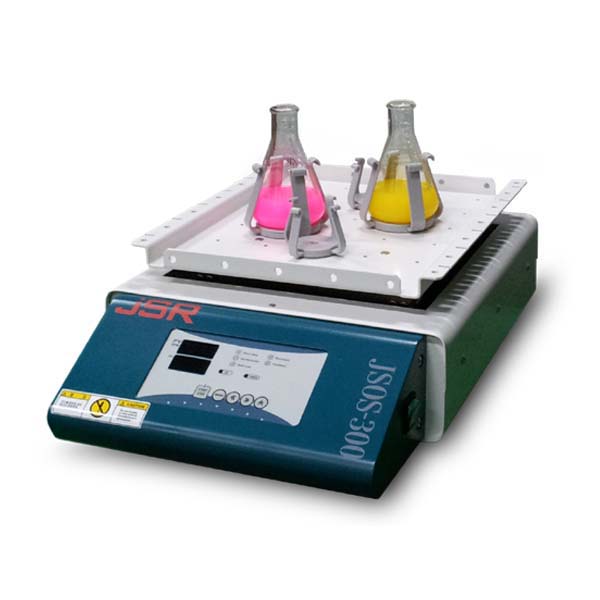

Compact Orbital Shaker Model: JSOS-300 JSR Korea
JSOS-300 Orbital Shaker is compact and practical shaker for agitating samples in a container (e.g. flasks, bottles, tubes) in ambient condition to aerating, mixing and extracting samples. Various application in chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Specifications
| Shaking Motion | Orbital |
| Speed Range | 20 ~ 350 rpm (orbital) |
| Accuracy | ± 1 rpm |
| Control | Microprocessor Feedback Control |
| Auto STOP Timer | |
| Safety | Over-Speed Cut-Off |
| Material | Body – Epoxy Powder Coated Steel |
| Flask Platform – Epoxy Powder Coated Steel | |
| Electric | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
Model
| Art No. | JSOS-300 | |
| Dimensions | Platform | W275 x D345 mm |
| Oversized Platform | none | |
| W x D x H mm | Outer | 350 x 520 x 165 |
| Max. load | 15 kgs | |
| Shaking | Motion | Orbital |
| Speed | 20 ~ 350 rpm | |
| Stroke | 20 mm | |
| Motor Capacity | 15 Watt | |
| Power Rating | 0.5 Amp | |
| Power Plug | CEE 7/7 Schuko European Standard or BS 1363 British Plug | |
Features
| Controller |
| JSC-TACHO Digital Shaking Controller
Digital feedback RPM controller with automatic STOP timer, max. 99min 59sec / 99hr 59min / continuous 4 digit dual digital LED displays RPM and TIME Inbuilt rpm calibration function Adjustable smooth start and stop motion |
| Construction |
| Durable epoxy powder coated metallic casing
Corrosion resistant Stainless Steel 304 Universal Spring Rack
|
| Performance |
| Speed control from 20 to 350 rpm
Precise feedback control within ± 1 rpm Durable shaking mechanism with powerful AC motor supports orbital shaking motion maximum load up to 15 kgs
|
| Convenience |
| Height adjustable level feet for balancing, anti-vibration
Various choice of shaking platforms – Universal Flask Holder Platform – Dedicated Flask Holder Platform – Non slip Rubber Mat – Size adjustable poly-carbonate flask holder – Stainless steel flask holder – Test Tube Rack
|
| Safety |
| MAX RPM Cut-Off motor and AUDIO VISUAL ALARM
Motor failure ALARM OVER CURRENT CUT-OFF : Electric Leakage Breaker
|
Ordering Information
| Art No. | Descriptions | Platform Size | Elec. Req. | Net Wt. | Ship Wt. |
| JSOS-300 | Orbital Shaker | W275 x D345 mm | 220 VAC 50/60 Hz | 18 kg | 20 kg |
| (Orbital Shaker supplied without shaking platform and accessories) | |||||
