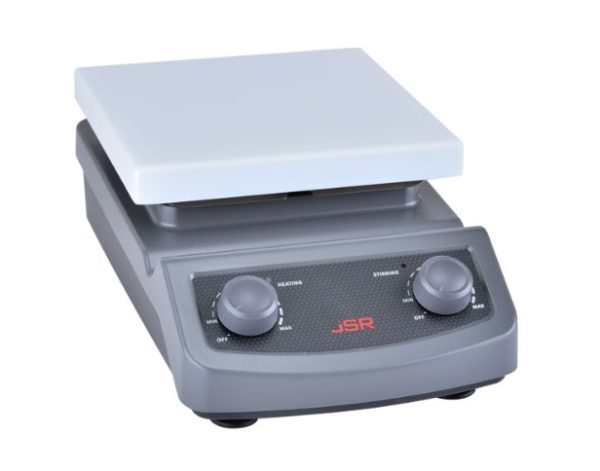

Analog Hotplate Magnetic Stirrer Model: JSHS-18A JSR Korea
JSHS-18A Analog hotplate Stirrer is practical and versatile general purpose choice for hotplate and magnetic stirring. Control temperature up to max. 400 °C, stirring speed max. 1,500 rpm. Durable and rugged aluminum casting body and chemical resistant ceramic coated top plate.
Features
| Controller |
| Easy-to-use analog PWM heat and stepless speed control
|
| Construction |
| 180 x 180 mm sized durable, chemical and scratch resistant ceramic coated aluminum top plate.
Thermal insulation between top plate and body ensure durability and long shelf life Low profile and functional design of main body provide safe use and chemical spill protection Main body made by aluminum casting with durable epoxy powder coating resistant to most of the chemical and thermal damage Base plate made by engineering plastic provides durability and resistant to chemical and fumes Suction-Cup type Feet provide strong and stable attachment on the table surface
|
| Performance |
| Temperature control max. 400 oC
Stirring speed max. 1,500 rpm
|
| Convenience |
| Screw type attachment hole on the body for optional stand rod
|
| Safety |
| OVER TEMP. PROTECTION
OVER CURRENT CUT-OFF : Fuse
|
Specifications
| Hotplate Dims. | : 180 x 180 mm |
| Temp. Range | : Max. 400 oC |
| Stirring Speed | : Max. 1500 rpm |
| Control | : Fine PWM Heat, Stepless Speed Control |
| Safety | : Over-Temperature Cut-Off |
| : Over Current Cut-Off | |
| Material | : Hotplate – Aluminum /w Ceramic Coating |
| : Body – Aluminum Casting /w Epoxy Powder Coating | |
| Electric | : 230±10% VAC 50/60Hz 1-Phase |
| Plug config. | : CEE 7/7 Schuko |
Models
| Art. No. | JSHS-18A |
| Performance Data | |
| Temp. Range | Max. 400℃ |
| Speed Range | Max. 1500 rpm |
| Usable Magnetic Bar | Max. 50 mm in length |
| Stirring Capacity (H2O) | 20 liter |
| Controller | |
| Type | Fine PWM Heat Control |
| Stepless Speed Control | |
| Independent ON/OFF Switch | |
| Motor | Brushless Shade Motor |
| Heater | 600 Watt |
| Dimensions | |
| Plate Dims. (W x D) | 180 x 180 mm |
| Outer Dims. (W x D x H) | 180 x 330 x 110 mm |
| Safety Data | |
| Safety Device | Over Temp. Cut-Off |
| Over Current Cut-Off | |
| Material Data | |
| Top Plate | Aluminum with ceramic coating |
| Body | Aluminum casting with epoxy powder coating |
| Base | Engineering Plastic |
| Electrical Data | |
| Rated voltage | 230 ± 10% VAC |
| Power frequency | 50/60 Hz |
| Nominal power | 620 Watt 3.0 amp |
| Phase | 1 Phase |
| Plug configuration | CEE 7/7 Schuko or BS 1363 |
| Usable Condition | |
| Temp. & Humidity | 5oC – 40 oC, < 80% RH |
| Packaging Data | |
| Shipping Dims. (W x D x H) | 280 x 460 x 170 mm |
| Type of packaging | Carton |
| Net Weight | 2.9 kg |
| Shipping Weight | 3.9 kg |
Ordering Information
| Art No. | Descriptions | Elec. Req. | Net Wt. | Ship Wt. |
| JSHS-18A1 | Analog Hotplate Magnetic Stirrer | 230 VAC 50 Hz | 2.9 kg | 3.7 kg |
| JSHS-18A2 | Analog Hotplate Magnetic Stirrer | 230 VAC 60 Hz | 2.9 kg | 3.7 kg |
| Optional Accessories | |
| Art No. | Descriptions |
| PHA-03S | Stand Rod, Stainless Steel |
| PHA-04H | SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea |
