Refrigerated Programmable Incubator (Light ON/OFF Control) Model: JSBI-840CPL JSR Korea

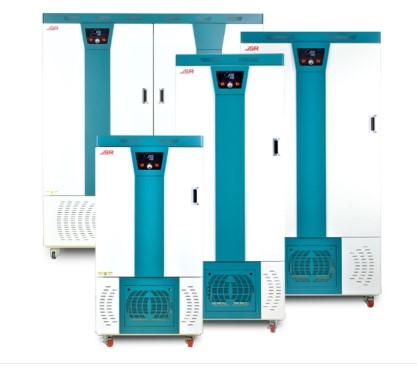

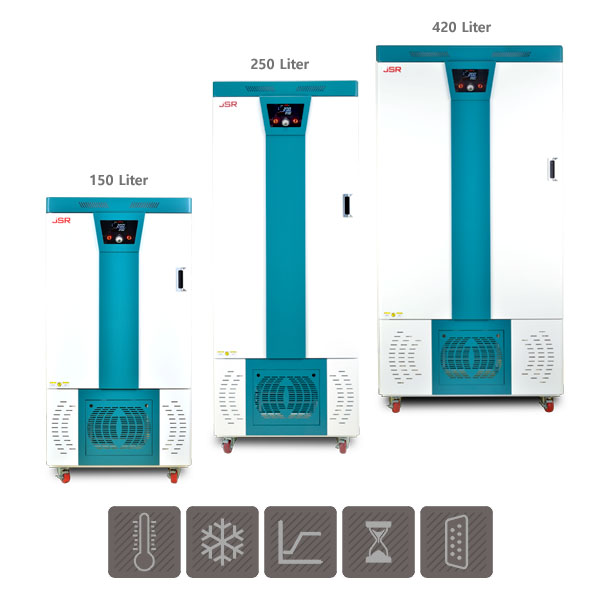

Refrigerated Incubator, Floor Standing, 10 Step Programmable, Temperature Range +0 °C to +70 °C, Light ON/OFF Program, Chamber Volume 150, 250, 420, 840 liters.
General Specifications
| Heating | Forced Air Convection |
| Refrigeration | CFC Free air cooled hermetically sealed compressor |
| Temp. Range | +0 oC ~ 70 oC |
| Accuracy | ± 0.2 oC at 20.0 oC |
| Uniformity | ± 0.5 oC at 20.0 oC |
| Controller | JIC-CON 5th Generation Digital PID Temperature Controller |
| 10 Step Temperature Programming Capability, 1 ~ 999 times repeatable | |
| Light ON/OFF Program on each program step for Day-Night simulation | |
| 3 Group Zone PID Temperature Control Algorithm | |
| 3-Point Temperature Calibration | |
| 1-Point Temperature Offset Calibration | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over-Cooling Cut-Off | |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| Inner Door – 5 mm thick Tempered Safety Glass | |
| including PVC coated wire shelf | |
| optional perforated stainless steel shelf | |
| Electrical Data | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
Features

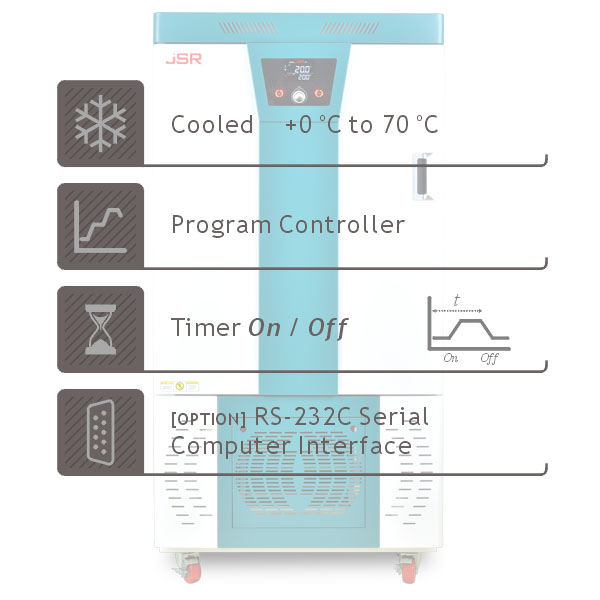

10 Step Temperature and Day/Night PROGRAM
| Performance |
| • Control Temperature Range from +0℃ to +70℃
• Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free • Air cooled refrigeration system with hermetically sealed compressor |
| Controller |
| • DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER
Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable • Light ON/OFF Program on each program step for Day-Night simulation • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-ZONE PID ALGORITHM • 3-POINT CALIBRATION / 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • Delay starter to protect compressor. • RS-232C PC COMMUNICATION INTERFACE [OPTION] |
| Construction |
| • Durable epoxy powder coated metallic casing
• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples
|
| Convenience |
| • Outer door with self-adhesive magnetic packing
• Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing
|
| Safety |
| • PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM
• DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater, compressor and AUDIO VISUAL ALARMS ALARM HIGH : +5 oC above set temp. ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • DOOR OPEN AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF : Electric Circuit Breaker |
Model

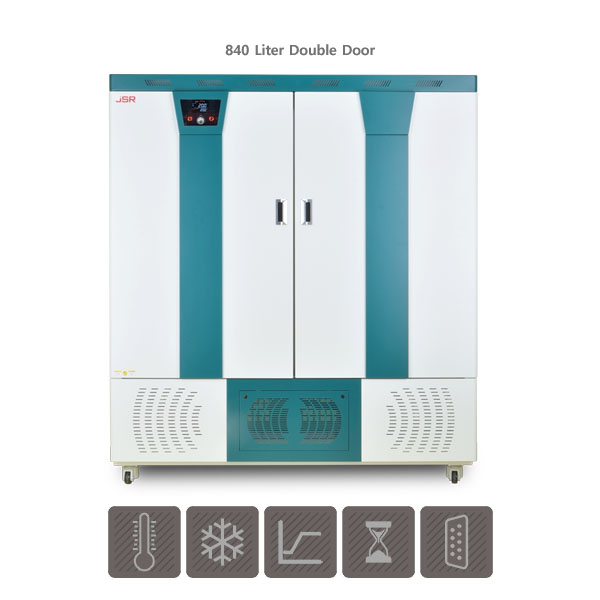

| Model | JSBI-840CPL |
| Dimension Data | |
| Chamber Volume | 840 Liters |
| Inner Dims. (W x D x H mm) | 1400 x 600 x 1000 |
| Outer Dims. (W x D x H mm) | 1580 x 925 x 1770 |
| Inner Glass Door (W x H mm) | 661 x 1077 |
| No. of Shelf Positions | 72 ea |
| No. of Shelf included | 6 ea |
| Performance Data | |
| Heating System | Forced Air Convection |
| Cooling System | Hermetically Sealed Air Cooled Compressor |
| Temp. Range | +0 oC ~ +70 oC |
| Accuracy at +20.0 oC | ±0.2 oC |
| Uniformity at +20.0 oC | ±1.0 oC |
| Lamp Type, Length | LED 870 mm |
| Lamp Configuration | 15 watt x 12 ea |
| Electrical Data | |
| Rated voltage | 220 ± 10% VAC |
| Power frequency | 50 / 60Hz |
| Heater Output | 3.0 kW |
| Nominal power | 5.0 kW 22.0 amp |
| Phase | 1 Phase |
| Plug configuration | CEE 7/7 Schuko or BS 1363 |
Ordering Information
| Art. No. | Descriptions | Voltage |
| JSBI-840CPL | Programmable Refrigerated BOD Incubator, 840 L with Light Control | 220 VAC 1~ ph 50/60Hz |
Optional Accessories
| Art. No. | Descriptions |
| PHS-A06 | Perforated Shelf, Stainless Steel 304, W470 x D480 mm for JSBI-150CPL |
| PHS-C05 | PVC Coated Wire Shelf, W470 x D480 mm for JSBI-150CPL |
| PHS-A06 | Perforated Shelf, Stainless Steel 304, W470 x D480 mm for JSBI-250CPL |
| PHS-C05 | PVC Coated Wire Shelf, W470 x D480 mm for JSBI-250CPL |
| PHS-A13 | Perforated Shelf, Stainless Steel 304, W670 x D580 mm for JSBI-420CPL |
| PHS-C06 | PVC Coated Wire Shelf, W670 x D580 mm for JSBI-420CPL |
| PHS-A14 | Perforated Shelf, Stainless Steel 304, W675 x D525 mm for JSBI-840CPL |
| PHS-C07 | PVC Coated Wire Shelf, W675 x D525 mm for JSBI-840CPL |
| PHS-A99 | Shelf Support, Set of 4 ea |
