PERFORMANCE – Digital Hotplate Magnetic Stirrer Model: JSHS-18DX JSR Korea

  with automatic optimal stirring speed correction

Controller and motor equipped with special algorithm, when it detects detached magnetic bar it stops

stirring and place the magnetic bar on the center position. Controller automatically reset to optimum

stirring speed and restart stirring action repeatedly to prevent damage of sample which may be

caused by stirring failure.

– OIL temperature control Mode

  for high viscous medium heating

Accurate temperature control of high-viscosity medium such as oil, which cannot be controlled by

conventional hotplate that is on the market. JSHS-18DX provides dual heating mode for high–viscosity

medium (Oil) as well as low-viscosity medium (Water) using PHE-01T External Temperature Probe.

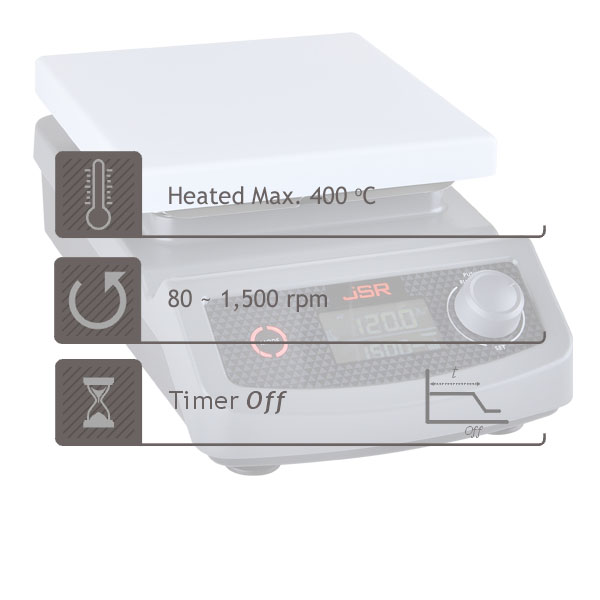

• Temperature setting from + 25 ^oC to 400 ^oC in 0.1 ^oC display resolution within ±3.0℃ accuracy

• CA sensor embedded in top plate to measure and control temperature

• Stirring speed range from 80 to 1,500 rpm in 5 rpm resolution

• Timer setting range from 1 min to 99 hr 59 min

• Supports Dual Heating Mode (Oil and Water)

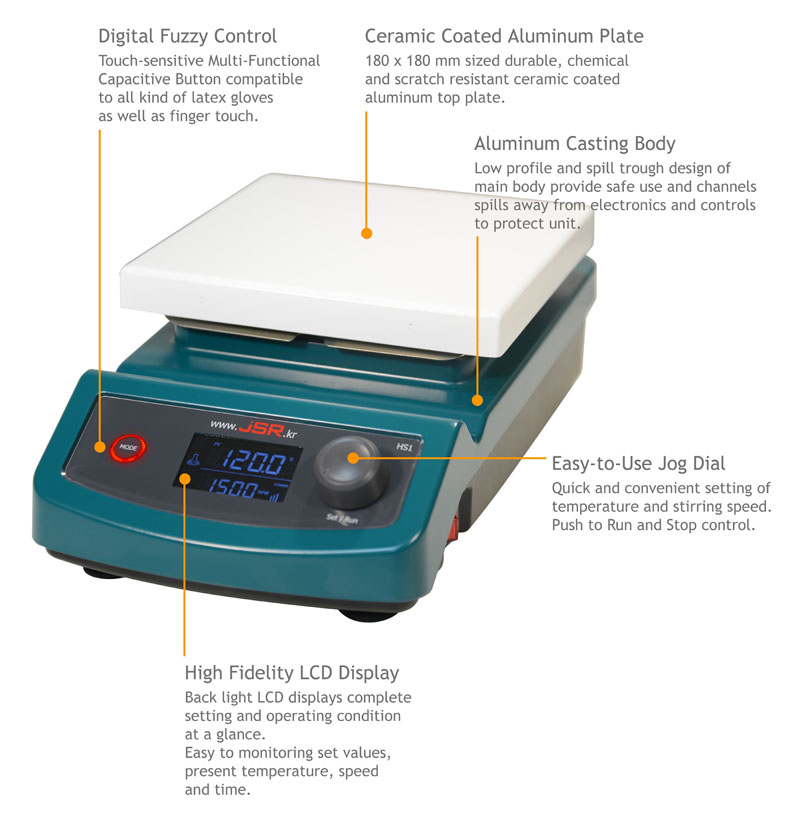

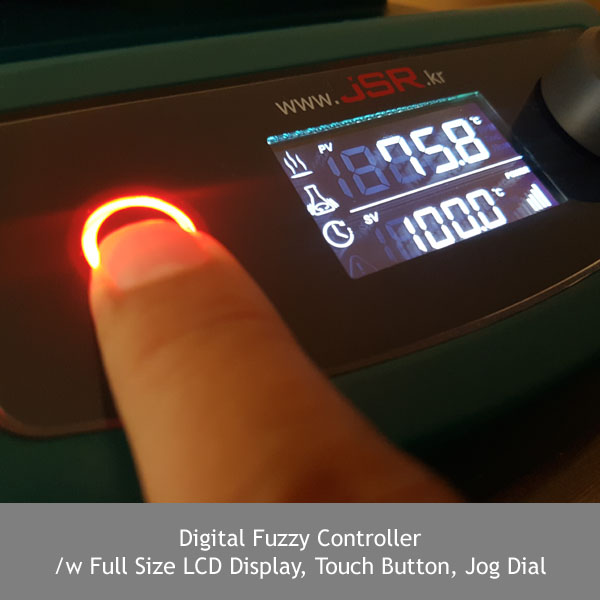

• Advanced microprocessor Digital Fuzzy Controller with Touch button and Jog Dial.

• Accurate temperature and stirring speed display and control

• Rugged, solid and chemical-proof control panel surface

• Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch.

• Easy-to-use Jog Dial for quick and convenient setting of temperature and stirring speed. Push to Run and Stop control.

• High-fidelity clear back light LCD display completes setting and operating condition at a glance. Easy to monitor set values, present temperature, speed and time.

• Connected to optional External Temperature Probe to directly measure and control sample temperature

• Thermal insulation between top plate and body ensure durability and long shelf life

• Low profile and spill-trough design of main body provides safe use and channels spills away from electronics and controls to protect unit.

• Main body made with aluminum casting with durable epoxy powder coating is resistant to most of the chemical and thermal damage

• Base plate made with engineering plastic provides durability and resistant to chemical and fumes

• Suction-Cup type Feet provides strong and stable attachment on the table surface

• Optional External Temperature Probe to measure sample temperature directly

• Optional chemical resistant Teflon Temperature Probe

• Optional clamp, holder and wire clip sets

• OVER CURRENT CUT-OFF : Fuse

including….

PHE-01T External Temperature Probe, CA, Stainless Steel

PHA-03S Stand Rod, Stainless Steel

PHA-04H SET of Temperature Probe Holder, Clamp, Wire Clip x 2 ea
