Description
General Programmable Incubator Temp. Range ambient +5 °C to +70 °C Model: JSGI-250T JSR Korea
Heated Incubator, 10-Step Programmable, Temperature Range ambient +5 °C to +70 °C, Chamber Volume 50, 100, 150, 250 liters
General Specifications
| Heating System | Forced Air Convection |
| Temp. Range | ambient+5 oC ~ 70 oC |
| Accuracy | ± 0.2 oC at 37.0 oC (JSGI-050T) |
| Uniformity | ± 0.5 oC at 37.0 oC (JSGI-050T) |
| Controller | JIC-CON 5th Generation Programmable Temperature Controller |

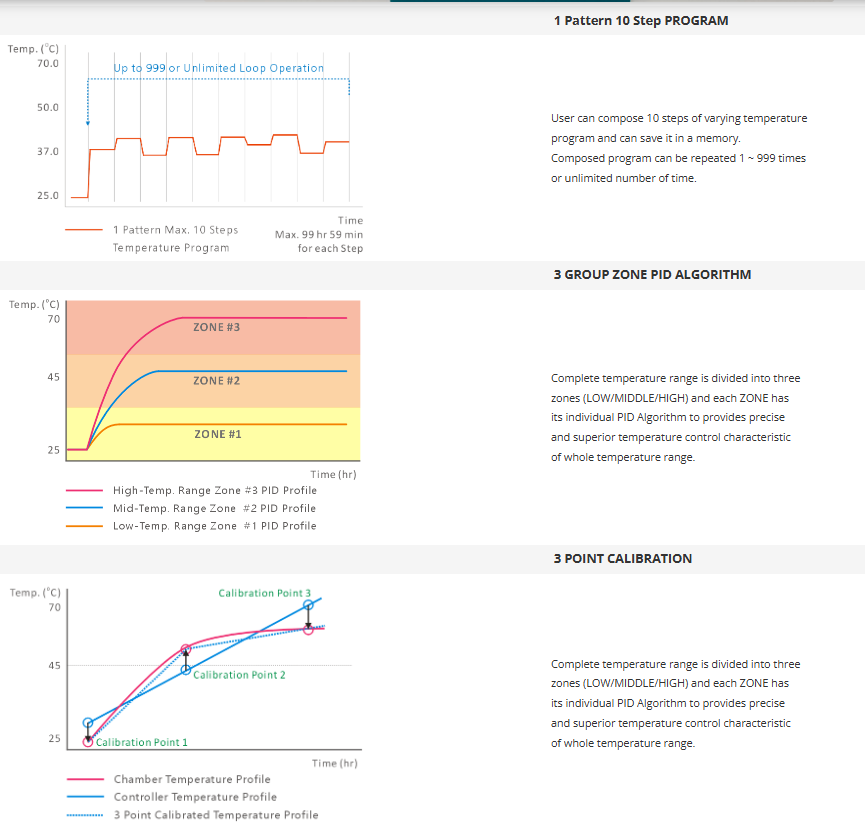

| Program | 1 Pattern, 10 Steps, 1 ~ 999 (or unlimited) times repreat |
| 3-Zone Temperature Control Algorithm | |
| 3-Point Temperature Calibration | |

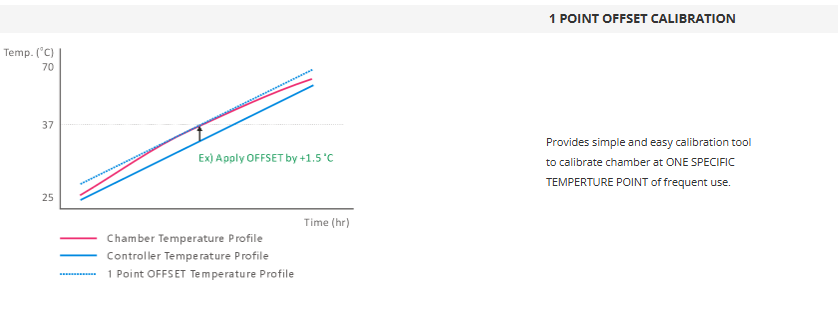

| 1-Point Temperature Offset Calibration | |
| Sensor | Class A Pt-100 Ω Sensor |
| Safety | Over-Temperature Cut-Off |
| Over Current Cut-Off | |
| Material | Body – Epoxy Powder Coated Steel |
| Chamber – Stainless Steel 304 | |
| Inner Door – 5 mm thick Tempered Safety Glass | |
| including PVC coated wire shelf | |
| optional perforated stainless steel shelf | |
| Electrical Data | 220±10% VAC 50/60Hz 1-Phase |
| Plug config. | CEE 7/7 Schuko or BS 1363 |
Features
| Performance |
| • Control Temperature Range from ambient +5 oC to +70 oC.
• Forced air circulation for excellent thermal accuracy and uniformity • Aero-dynamic chamber designed with circulation blower to achieve superior thermal uniformity • Separate heating compartment located on back wall for contamination free and maintenance free
|
| Controller |
| • DIGITAL MICROPROCESSOR PID TEMPERATURE CONTROLLER
Integrated Digital Microprocessor Control System • GRAPHIC LCD DISPLAY Back Light Graphic LCD Display provides user-friendly operating information • UV COATED POLYCARBONATE TOUCH PANEL Equipped with Capacitive LED Lighting Touch Button provides sensitive touching operation and durability • ENCODER TYPE JOG DIAL • Push to Start and Stop, Rotary turn to change values provides easy and simple user interface • 0.1 oC CONTROL RESOLUTION • 10 Step Programming Capability, 1 ~ 999 times repeatable • Auto-Stop Timer 1 min ~ 99 hour 59 min and alarm • Auto-Start Timer 1 min ~ 99 hour 59 min and alarm • Temperature and Timer Memory Function in frequent use • 3-GROUP ZONE PID ALGORITHM • 3-POINT CALIBRATION • 1-POINT OFFSET CALIBRATION • POWER and TIMER RESTORE FUNCTION in case electric power outage • CLASS A PT-100 Ω Sensor • RS-232C PC COMMUNICATION INTERFACE [OPTION]
|
| Construction |
| • Durable epoxy powder coated metallic casing
• Corrosion resistant Stainless Steel 304 chamber with seamless round cornered edge allows easy cleaning and prevent leakage • Tempered safety inner glass door for easy observation of samples • Cable Access Port
|
| Convenience |
| • Outer door with self-adhesive magnetic packing
• Inner glass door with high density silicone gasket and air-tight door lock • Removable and height adjustable shelf by 25mm spacing • Opening size adjustable access port • Door switch cut-off heater and fan to reduce thermal drop when put in and out samples
|
| Safety |
| • PT SENSOR SHORT OR DISCONNECTION AUDIO VISUAL ALARM
• DUAL OVER TEMPERATURE CUT-OFF BY CONTROLLER AND INDEPENDENT THERMOSTAT Controller cut-off heater and AUDIO VISUAL ALARMS * ALARM HIGH : +5 oC above set temp. * ALARM LOW : -5 oC below set temp. Independent analog thermostat cut-off heater above set temperature • INNER GLASS DOOR AJAR AUDIO VISUAL ALARM • OVER CURRENT CUT-OFF |
Model
| Art. No. | JSGI-250T |
| Dimension Data | |
| Chamber Volume | 250 Liters |
| Inner Dims. (W x D x H mm) | 500 x 500 x 1000 |
| Outer Dims. (W x D x H mm) | 680 x 735 x 1320 |
| Inner Glass Door (W x H mm) | 561 x 1077 |
| No. of Shelf Positions | 36 ea |
| No. of Shelf included | 3 ea |
| No. of Cable Access Port | 1 ea |
| Performance Data | |
| Heating System | Forced Air Convection |
| Temp. Range | Amb. +5 oC ~ +70 oC |
| Accuracy at 37.0 oC | ±0.3 oC |
| Uniformity at 37.0 oC | ±1.5 oC |
| Heat up time to 37.0 oC | 20 min. |
| Electrical Data | |
| Rated voltage | 220 ± 10% VAC |
| Power frequency | 50 / 60Hz |
| Heater Output | 400 W |
| Nominal power | 410 W 2.0 amp |
| Phase | 1 Phase |
| Plug configuration | CEE 7/7 Schuko or BS 1363 |
Ordering Information
| Art. No. | Descriptions | Voltage |
| JSGI-050T | General Incubator, 48 L
including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
| JSGI-100T | General Incubator, 96 L
including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
| JSGI-150T | General Incubator, 150 L
including standard accessories 2 ea x PVC Coated Wire Shelf 8 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
| JSGI-250T | General Incubator, 250 L
including standard accessories 3 ea x PVC Coated Wire Shelf 12 ea x Shelf Support 1 ea x Instruction Manual 1 ea x Warranty Certificate |
220 VAC 1~ ph 50/60Hz |
Optional Accessories
| Art No. | Perforated Shelf, Stainless Steel 304 |
| PHS-A03 | for JSGI-050T W370 x D280 mm |
| PHS-A04 | for JSGI-100T W370 x D380 mm |
| PHS-A06 | for JSGI-150T W470 x D480 mm |
| PHS-A06 | for JSGI-250T W470 x D480 mm |
| Art No. | Wire Shelf, PVC Coated Steel |
| PHS-C03 | for JSGI-050T W370 x D280 mm |
| PHS-C04 | for JSGI-100T W370 x D380 mm |
| PHS-C05 | for JSGI-150T W470 x D480 mm |
| PHS-C05 | for JSGI-250T W470 x D480 mm |
| PHS-A99 | Shelf Support, Set of 4 |
