Description

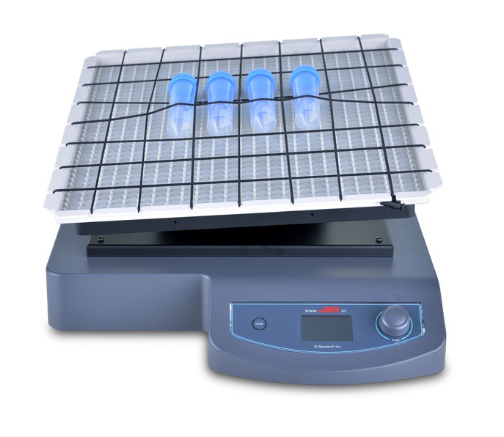

3D Rocker Shaker Model: JSSK-3D JSR Korea
JSSK-3D 3D Rocker designed for gentle agitating samples in a container (e.g. bath, flasks, bottles, tubes) within ambient condition for staining, mixing and extracting. Various application in biotechnology for electrophoresis gel staining, chemistry, biomedical, pharmaceutical, cell culture, tissue culture, environmental and agriculture applications.
Features
| Controller |
| Advanced MCU processor applies precise speed control technology
6 Preset Programs 10 Steps for each program Touch-sensitive Multi-Functional Capacitive Button compatible to all kind of latex gloves as well as finger touch. Easy-to-use Jog Dial for quick and convenient setting of speed and timer. Push to Run and Stop control. High-fidelity clear back light LCD displays complete setting and operating condition at a glance. Easy to monitoring set values, present speed and time.
|
| Performance |
| Speed range 10 to 70 rpm
9o Tilt Angle Digital Timer set up to 99hr 59min by 1 min W350 x D350 mm standard shaking platform Powerful driving mechanism with “Slow Start Function” Silent BLDC motor provides long shelf life and maintenance free Maximum loading capacity up to 10 kgs
|
| Construction |
| Silent BLDC motor
Rugged and low profile ABS plastic body Light weighted aluminum shaking platform
|
| Convenience |

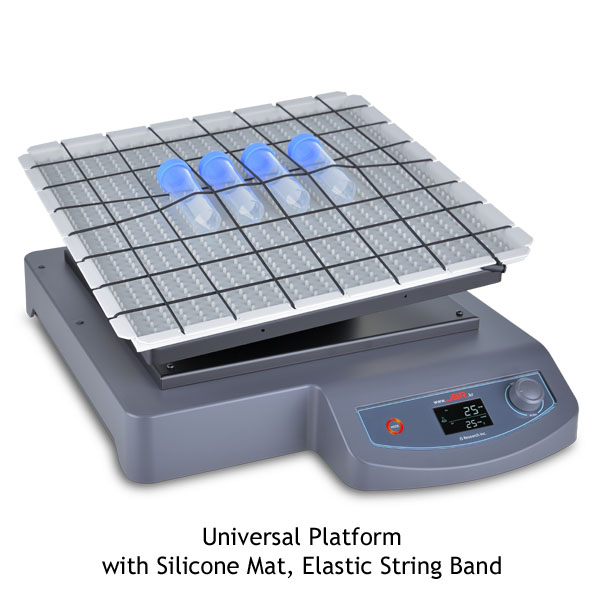

| Interchangeable shaking platform
Anti-Slip Silicone Mat
|
| Safety |
| -Over load protection
-Over current protection
|
Specifications
| Type of Shaking | : 3D Orbital |
| Platform Dimensions (WxD) | : 350 x 350 mm |
| Speed Range | : 10 to 70 rpm, 1 rpm resolution |
| Orbital Stroke | : 9o Tilt Angel |
| Controller | : Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
| : 99hr 59min by 1 min resolution | |
| : Full Size Digital Back Light LCD Display | |
| : Independent ON/OFF Switch | |
| : 6 Preset Programs, 10 Steps for each program | |
| Motor | : Brushless DC Motor |
| Safety Device | : Over Load Protection |
| : Over Current Protection | |
| Material | : ABS Plastic body |
| Electric | : 230±10% VAC 50/60 Hz 1-Phase |
| Plug config. | : CEE 7/7 Schuko or BS 1363 |
Model
| Art. No. | JSSK-3D |
| Performance Data | |
| Type of Shaking | 3D Orbital |
| Platform Dimensions (W x D mm) | 350 x 350 |
| Speed Range | 10 to 70 rpm, 1 rpm resolution |
| Shaking Angle | 9o Tilt Angle |
| Max Load | 10 kgs |
| Controller | |
| Type | Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
| Timer | 99hr 59min by 1 min resolution |
| Display | Full Size Digital Back Light LCD Display |
| Independent ON/OFF Switch | |
| Program Function | 6 Preset Programs, 10 Steps for each program |
| Platform Dimensions | |
| Universal Spring Rack | W350 x D350 mm |
| Universal Silicone Mat Platform | W350 x D350 mm |
| Motor | |
| Type | Brushless DC Motor |
| Power | 45 Watt |
| Rotating Direction | Clockwise |
| Safety Data | |
| Safety Device | Over Load Protection |
| Over Current Protection | |
| Material Data | |
| Body | ABS |
| Platform | Aluminum |
| Rated voltage | 230 ± 10% VAC |
| Power frequency | 50/60 Hz |
| Nominal power | 45 Watt |
| Phase | 1 Phase |
| Plug configuration | CEE 7/7 Schuko or BS 1363 |
| Usable Condition | |
| Temp. & Humidity | 5oC – 40 oC, < 80% RH |
| Packaging Data | |
| Shipping Dims. (W x D x H) | 600 x 590 x 320 mm |
| Type of packaging | Carton |
| Net Weight | 11.5 kg |
| Shipping Weight | 14.5 kg |
Ordering Information
| Art. No. | Descriptions | Voltage |
| JSSK-3D | 3D Rocker | 230 VAC 1 ph 50/60 Hz |
| (Rocker supplied without shaking platform and accessories) | ||
